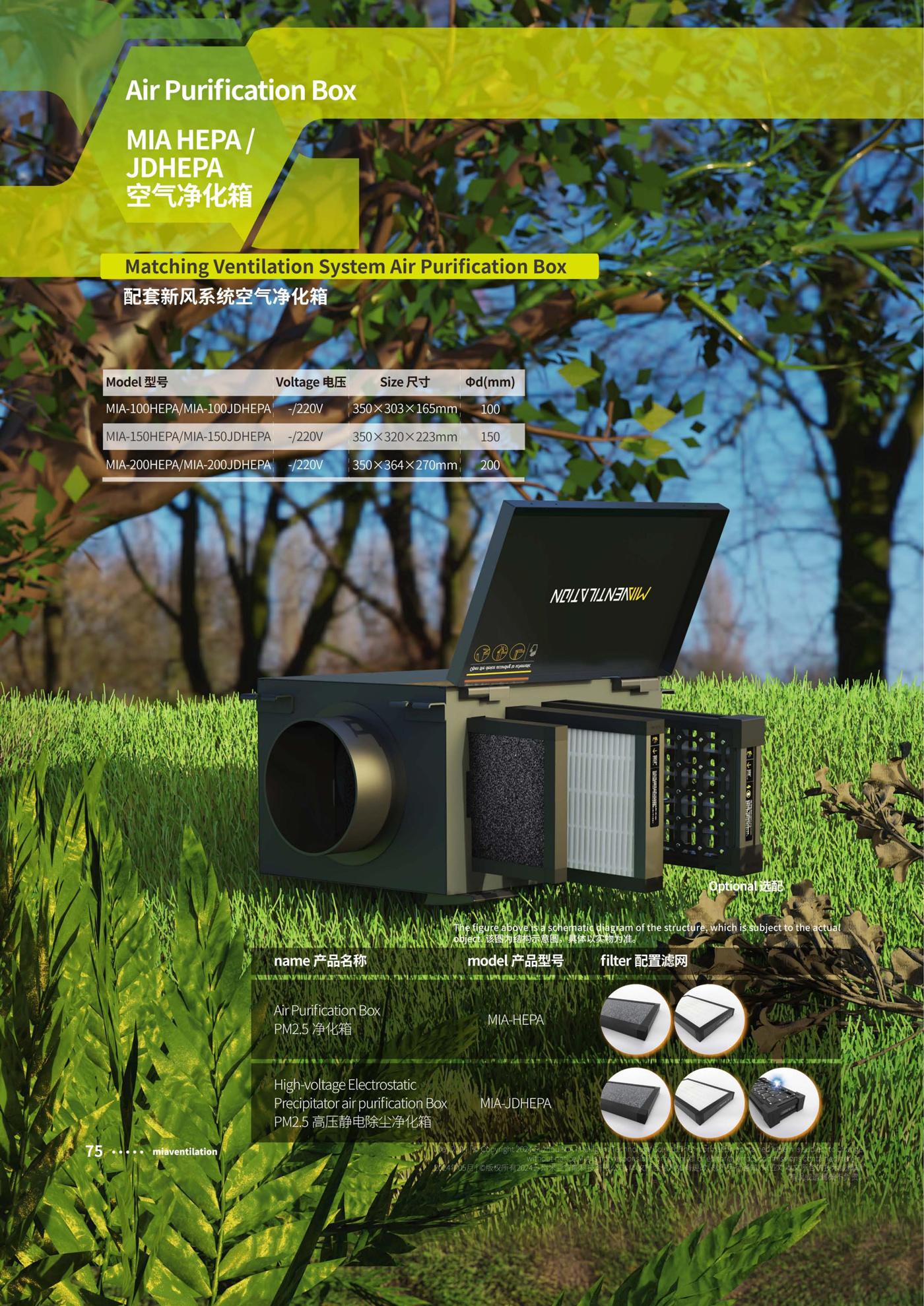

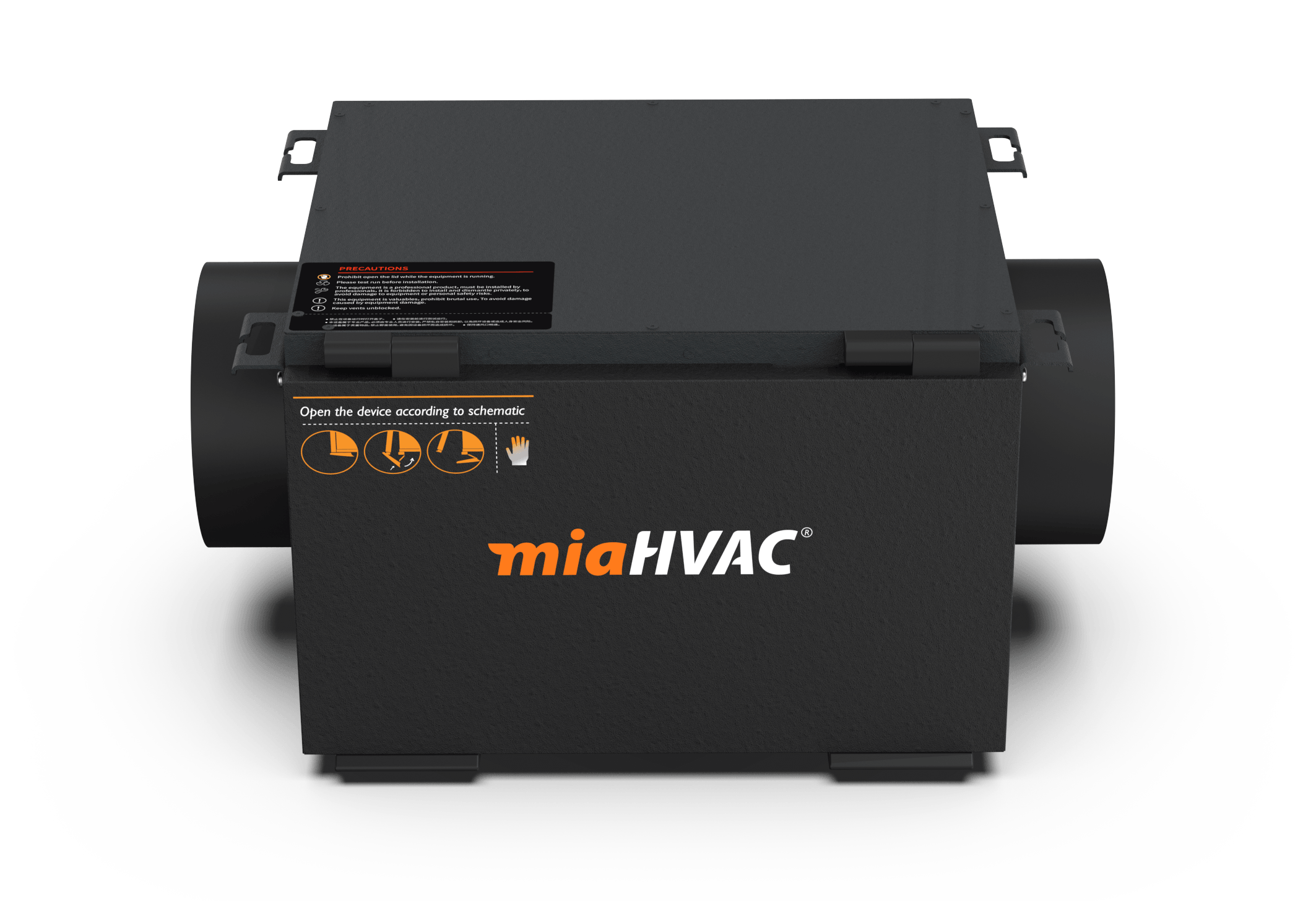

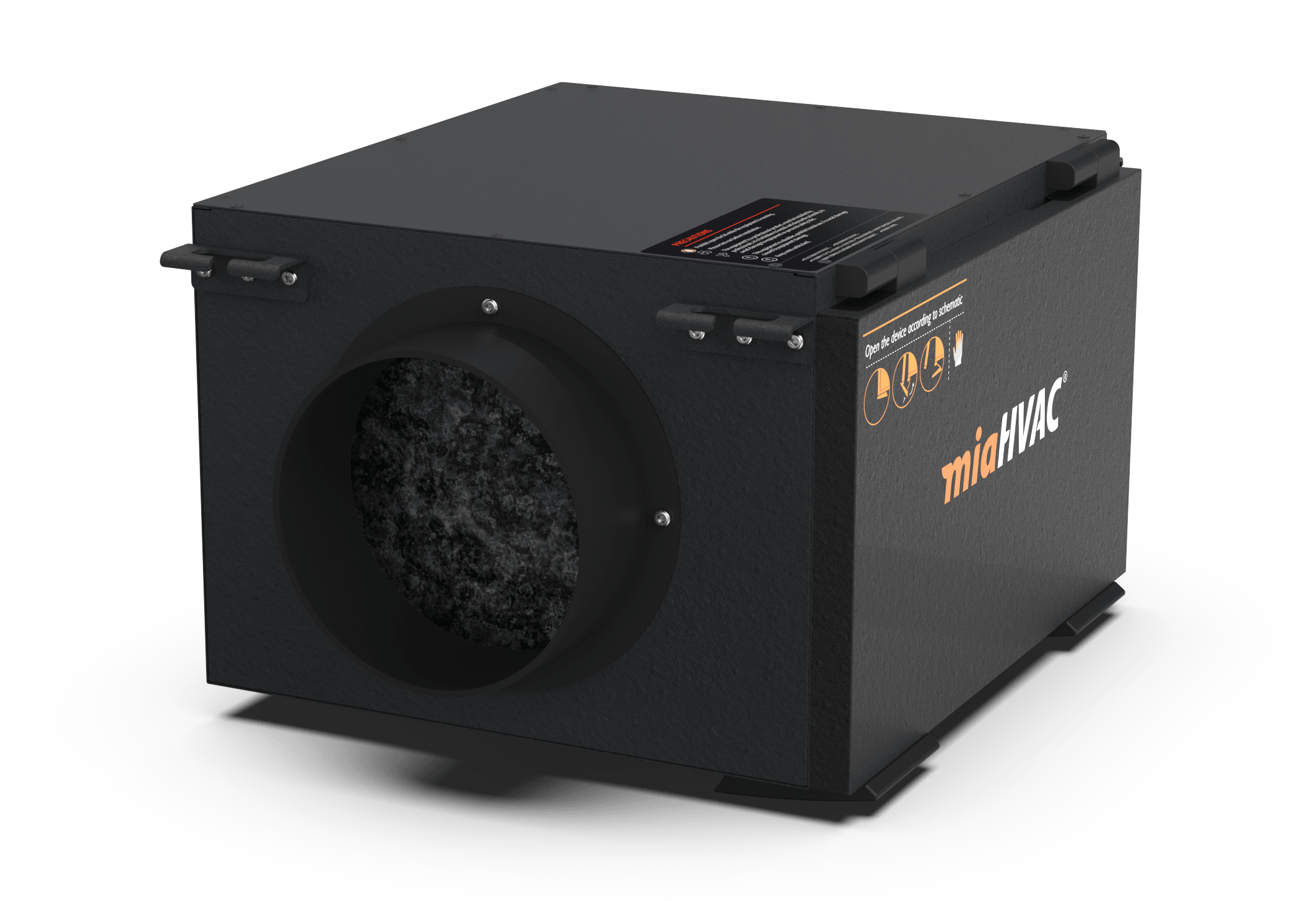

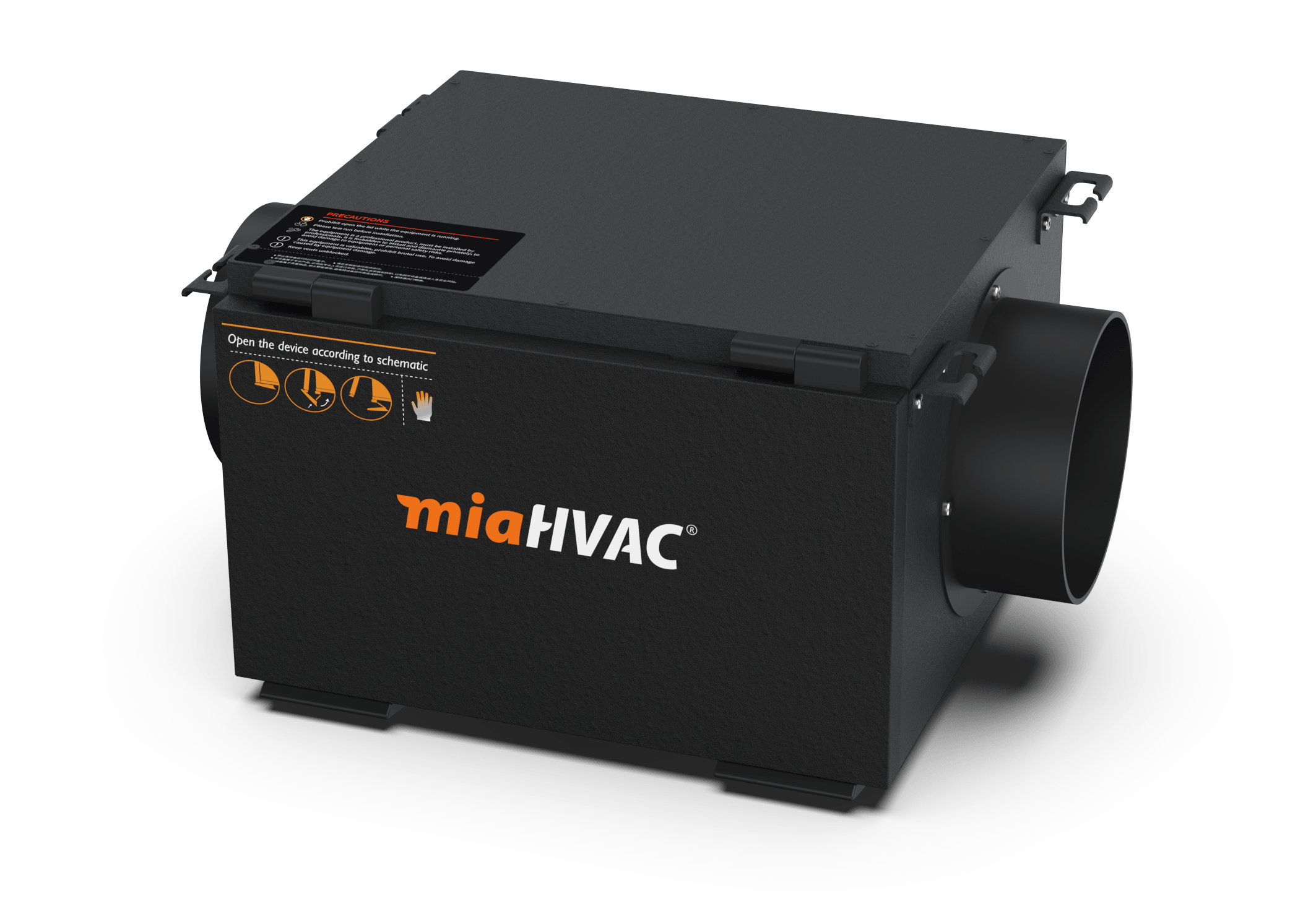

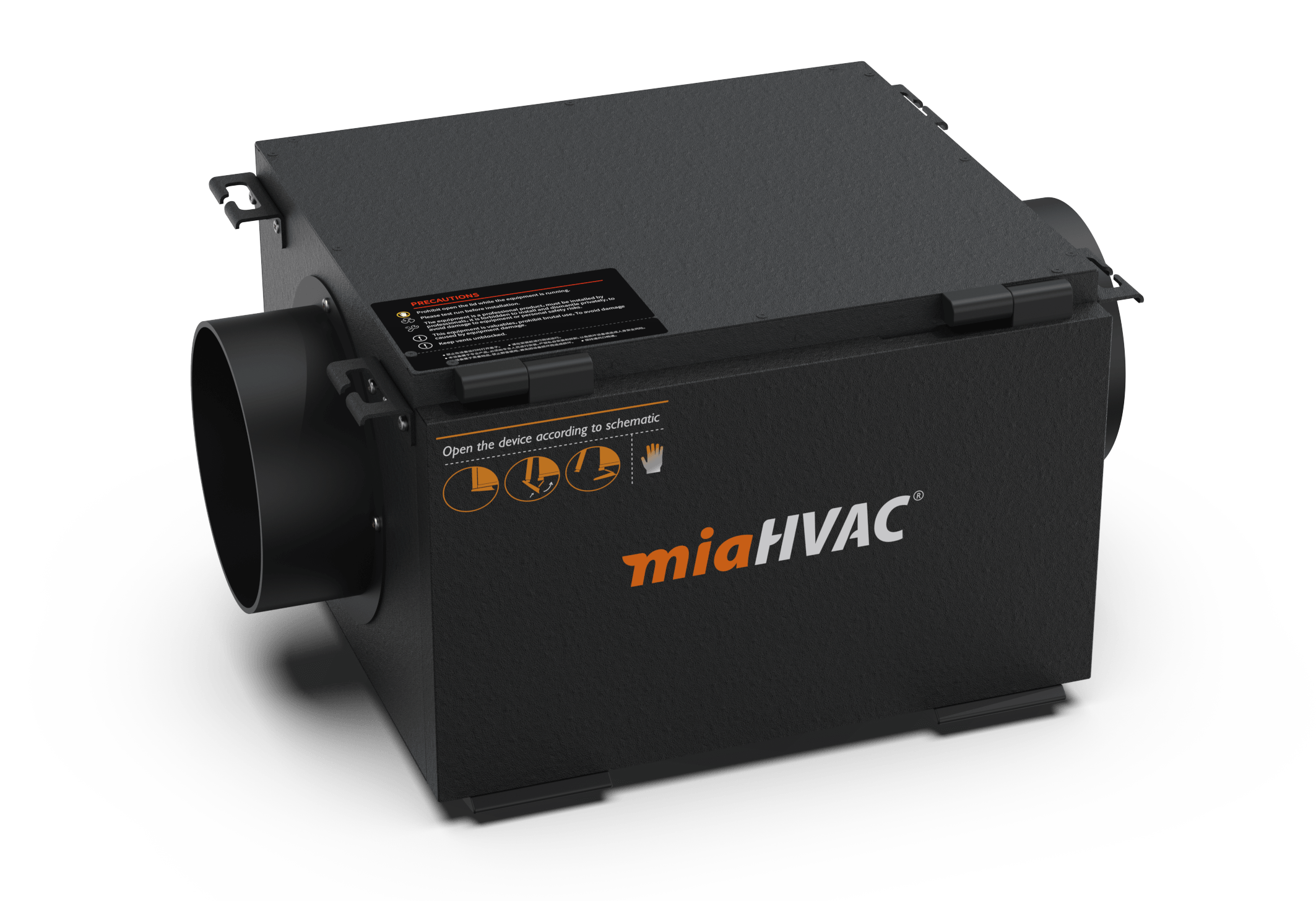

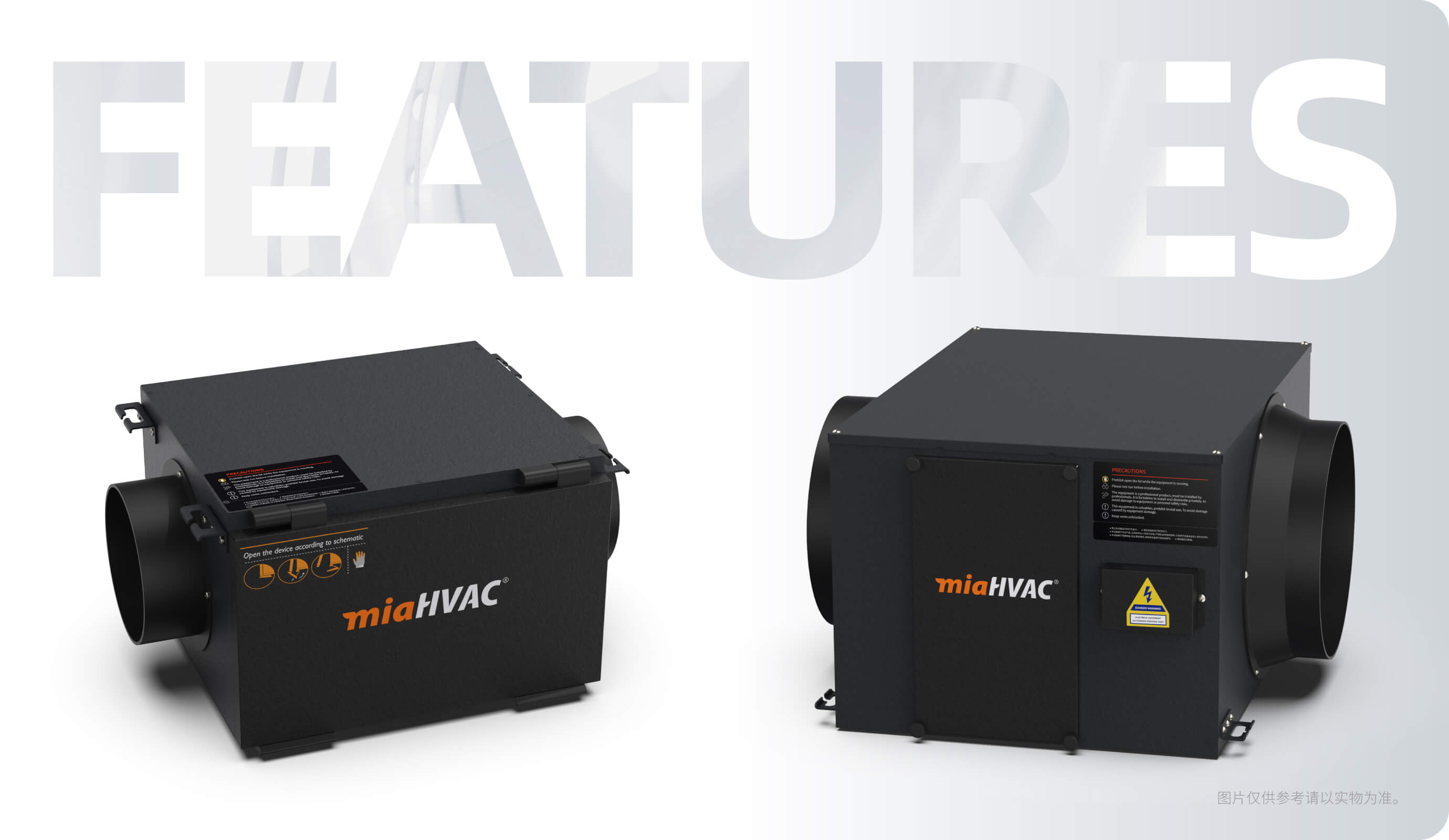

MIA AIR Purification Box

米亚空气净化箱

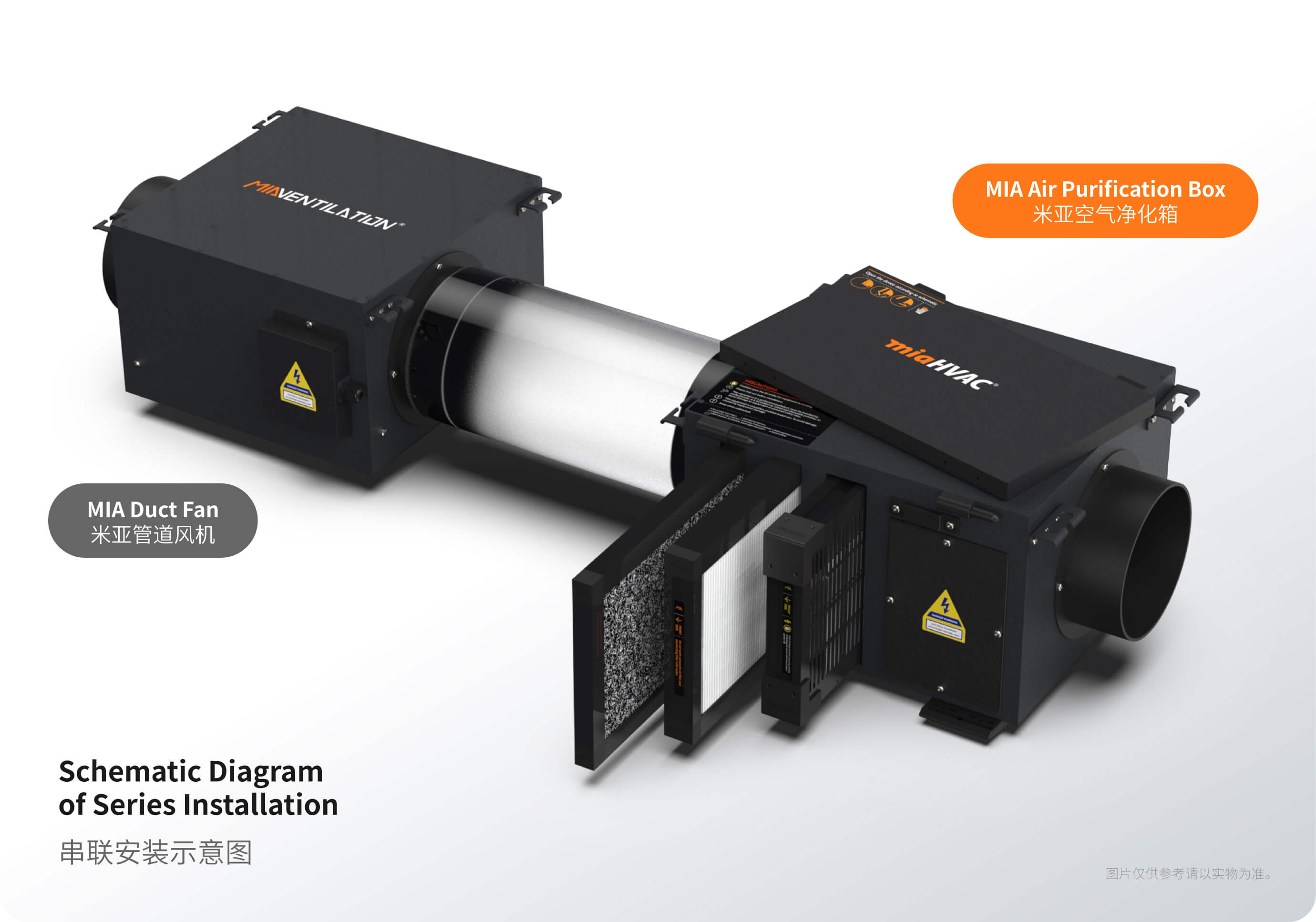

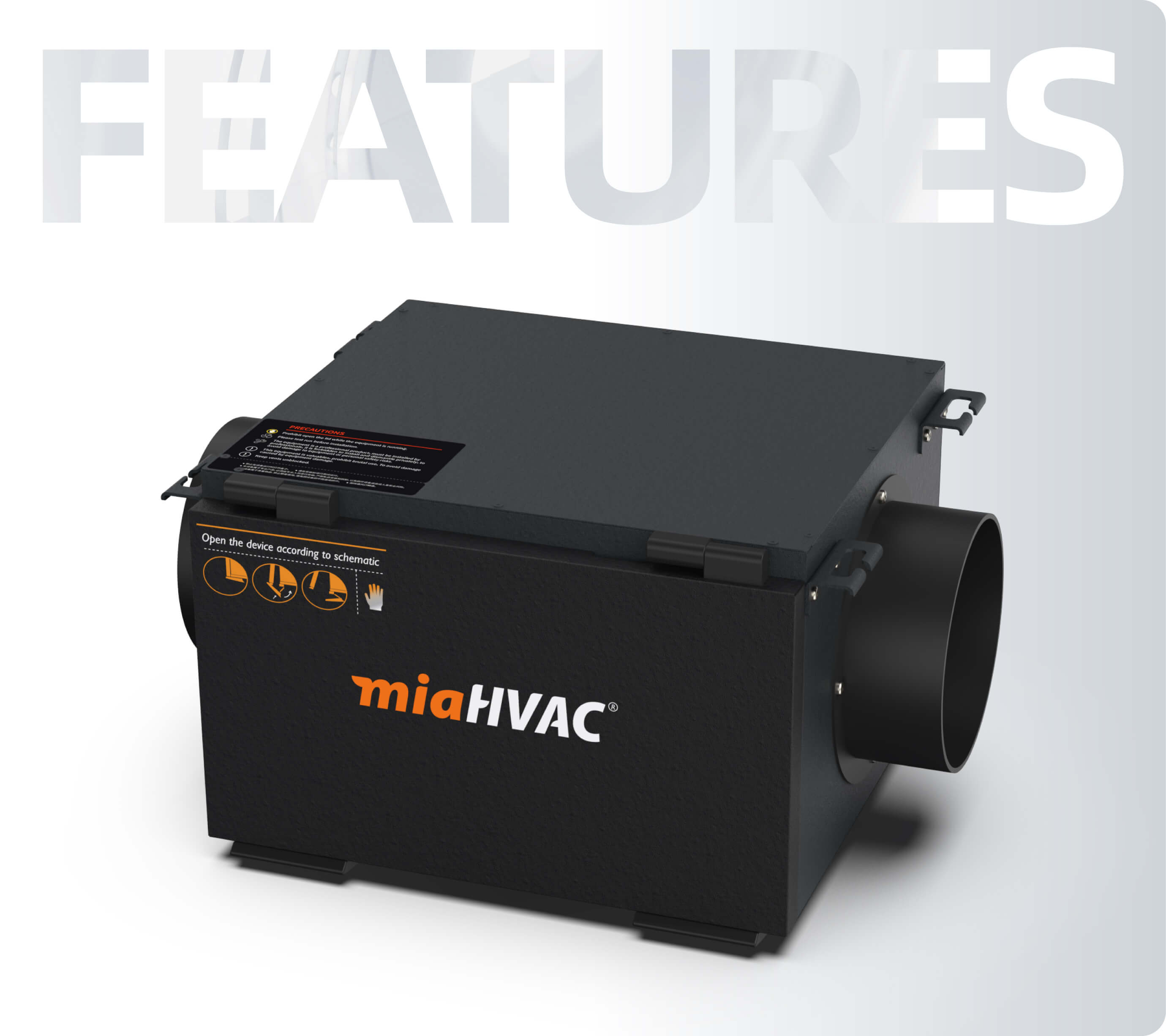

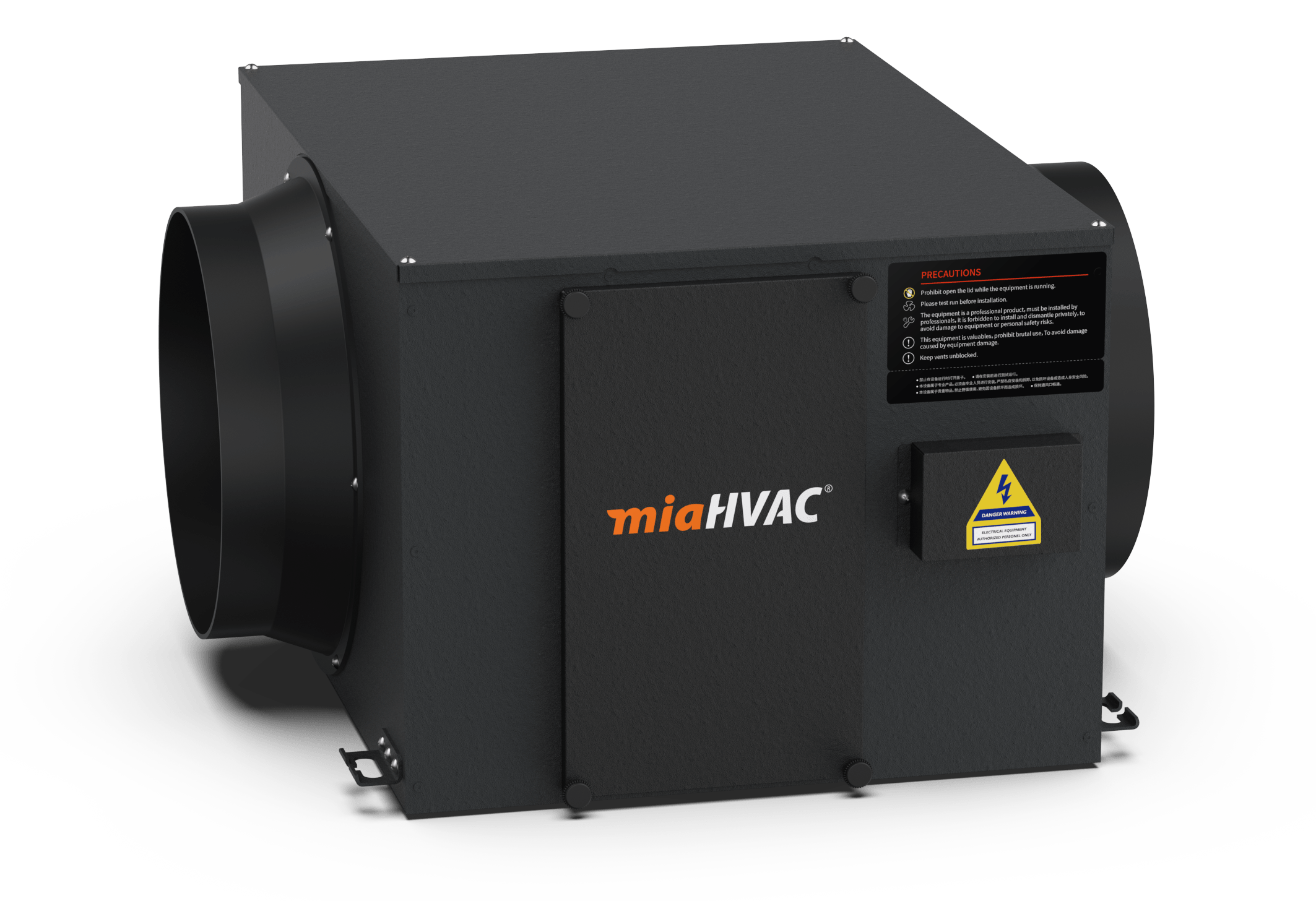

MIA AIR Purification Box:Specially designed to be used in conjunction with host equipment such as total heat exchangers, silent fans, duct fans, and fan cases to meet the high standard requirements for air purification. The purification box is equipped with an initial activated carbon 2-in-1 filter, HEPA high-efficiency filter, and can also be optionally equipped with a high-voltage electrostatic precipitator module. It also supports non-standard customization of coconut shell activated carbon+800/1000 iodine value zeolite filter (mainly used for purifying NO2). It can also support non-standard customization of initial and intermediate efficiency filters such as G3, G4, F7, F8, etc. It can also be customized according to the host to match the host flange diameter and can be integrated into an integrated machine or installed separately as a dual-use air purification box equipment. Support optional air quality monitoring intelligent WIFI controller, which can achieve separate speed regulation of air supply/exhaust, and support optional RS485, which can achieve centralized control of commercial buildings.

MIA米亚空气净化箱：专门用于和全热交换器/静音风机/管道风机/风机箱等主机设备进行配套使用，满足对于空气净化的高标准需求。净化箱内部标配初效活性炭二合一滤网，HEPA高效滤网，也可以选配高压静电除尘模块，也支持非标定制椰壳活性炭+800/1000碘值沸石滤网(主要用于净化NO2)，也可以支持非标定制G3,G4,F7,F8等初效及中效滤网，也可以根据主机定制匹配主机法兰口径的配套可对接成一体机或分体安装两用的空气净化箱设备。支持选配空气质量监测智能WIFI控制器，可以实现送风/排风分开调速，支持选配RS485，可以实现商用楼宇集中控制。

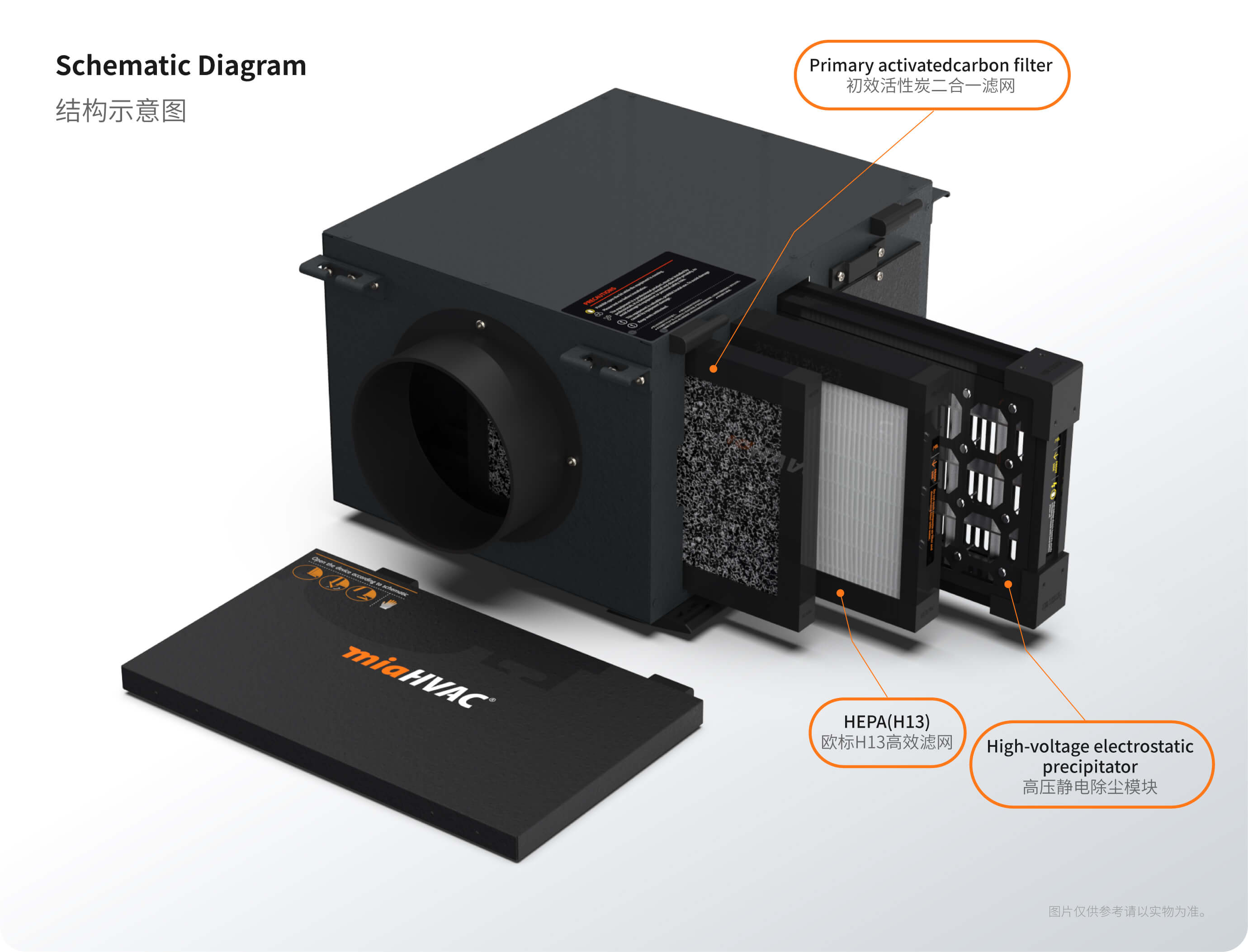

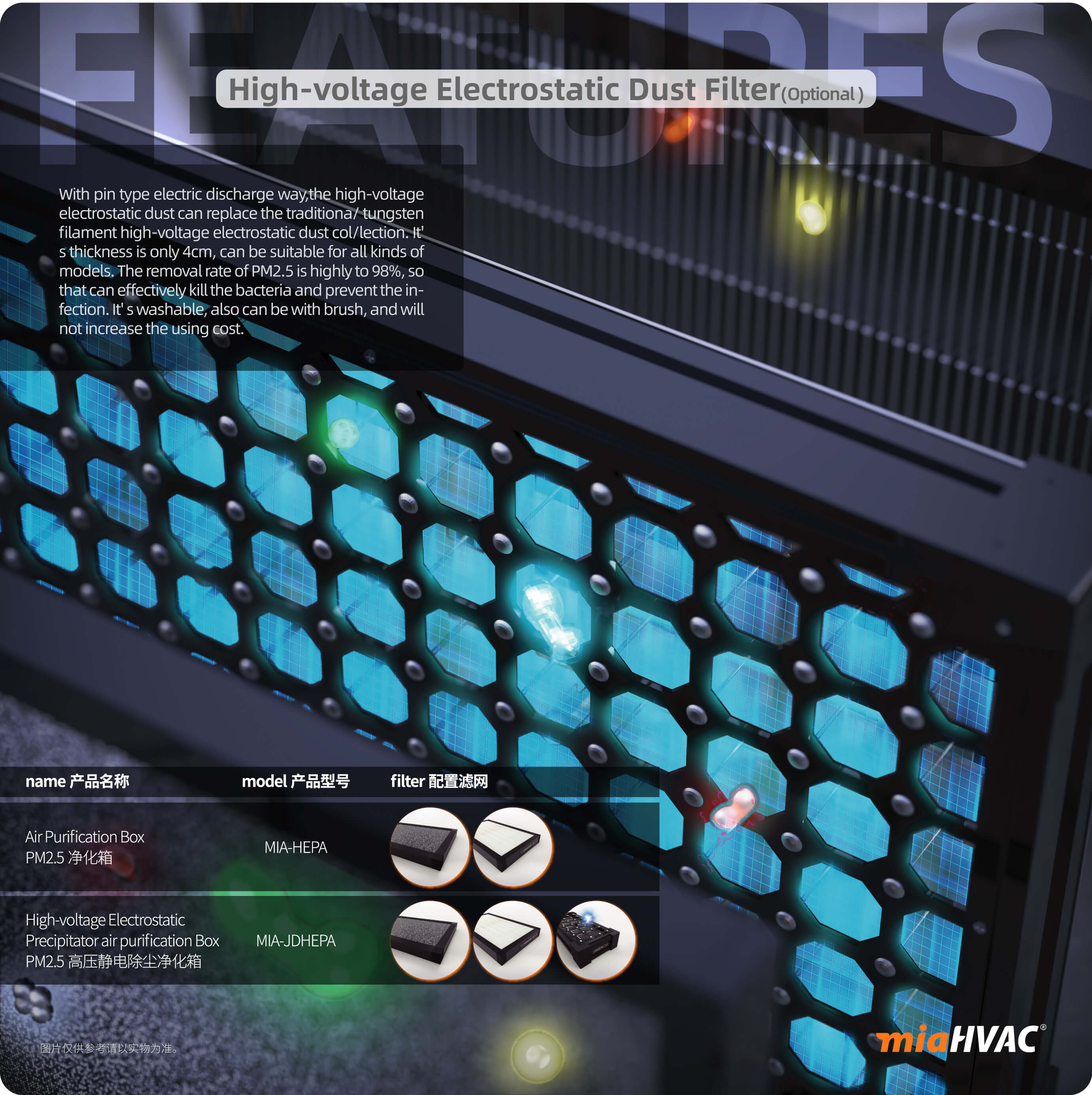

High-voltage Electrostatic Precipitator：The high-voltage electrostatic precipitator adopts the pin-type electric field discharge method to replace the traditional tungsten wire high-voltage removal method. The thickness is only 4cm, suitable for various kinds of our models, PM2.5 removal rate is highly to 98%. Also it can effectively kill bacteria to prevent the infection. It can be washed or cleaned with brush, no need to be replaced, greatly save the cost.

高压静电除尘杀菌模块：采用针式电场放电方式，代替传统钨丝高压静电集尘方式，模块厚度仅为4cm，可灵活适用于各种机型，对于PM2.5的去除效率高达98%。维护时可用清水进行湿洗，也可以用毛刷刷去集尘格中的灰尘，无耗材产生可反复使用，无需担心使用成本。

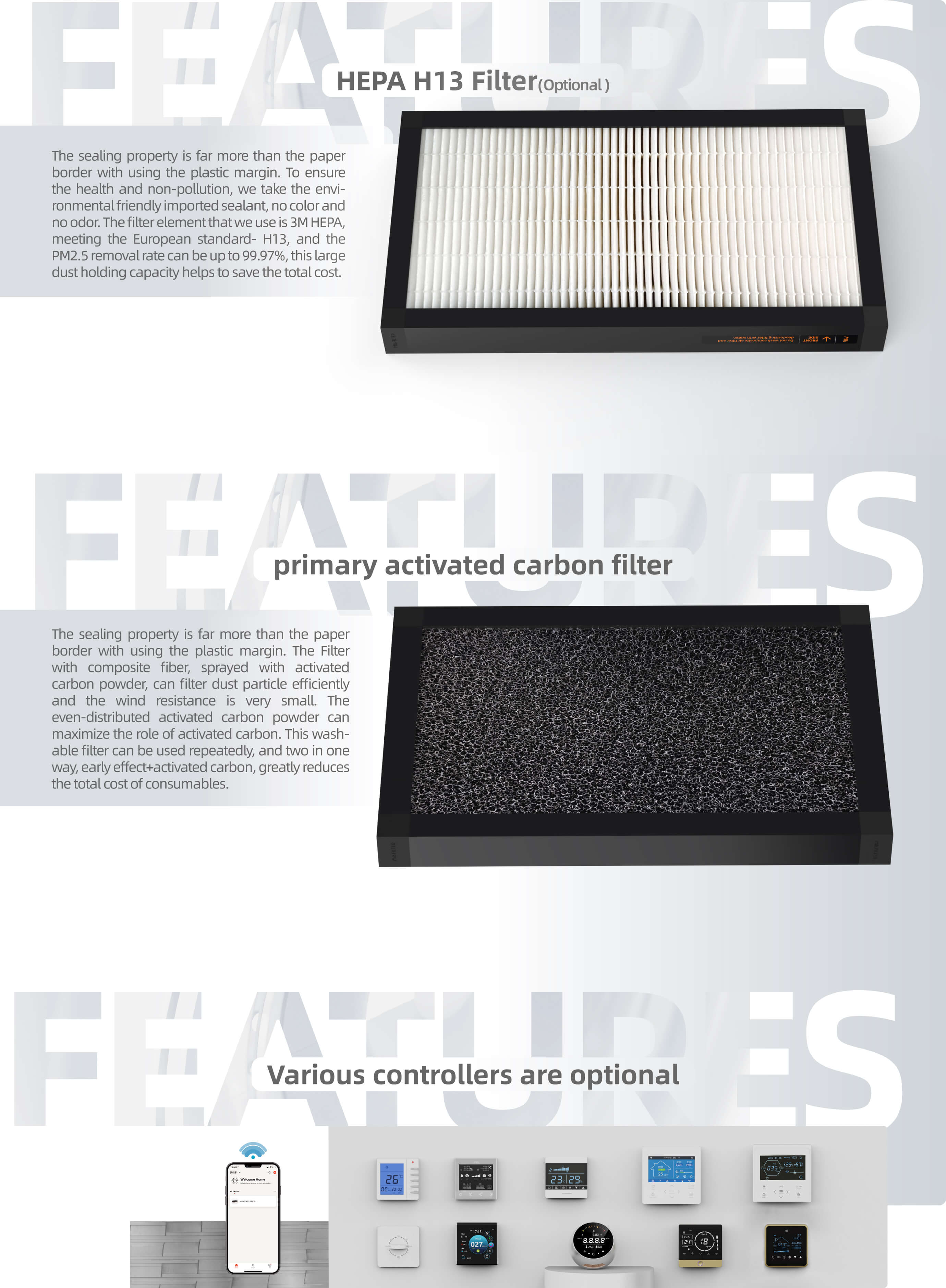

High Efficiency Particulate Air (HEPA-H13) Filter：The thickness of this filter is only 3cm. The plastic frame has higher sealing than paper frame, and we use the environmental friendly imported sealant, no color & odor, to ensure healthy and avoid pollution. The raw material of this HEPA filter is from 3M, European standard H13 level. PM2.5 removal rate can be up to 99.97%, and the large dust holding capacity can save the total cost of consumables.

H13级HEPA高效滤网：采用塑料边框，密封性能远超于纸边框，抽拉时平滑无摩擦感；密封胶采用无色无味环保进口胶，确保健康无污染；滤芯采用3M高效HEPA材质，过滤等级为欧标H13级，对于PM2.5的去除效率高达99.97%，超大容尘量为您最大限度节约耗材成本。

Primary Activated Carbon Filter：The plastic frame of this filter seals better than the paper frame, and it is only 2cm thick. The filter is made of composite fiber sprayed with activated carbon powder that can filter out dust particle efficiently. The wind resistance of this filter is very low. The method of spraying makes the activated carbon powder more evenly distributed, which can maximize the effect of activated carbon. This washable filter can be used repeatedly and the combination of primary filter with activated carbon can greatly save your cost of consumables.

初效活性炭二合一滤网：采用塑料边框，密封性能远超于纸边框，抽拉时平滑无摩擦感；滤芯采用复合纤维表面喷涂活性炭粉末，有效过滤粉尘大颗粒，且风阻小，粉末喷涂式活性炭使活性炭分部更均匀，最大化的发挥活性炭的作用。该滤网可用清水清洗反复使用，初效活性炭二合一的方式更是大大降低了耗材使用成本。

Support optional intelligent WIFI controller, PM2.5，CO2，TVOC， Real time monitoring of temperature and humidity, equipped with RS485 to support centralized control of buildings, can meet the needs of various usage scenarios.

支持选配智能WIFI控制器，PM2.5，CO2，TVOC，温湿度实时监测，选配RS485可支持楼宇集中控制，可以满足各种使用场景需求。
