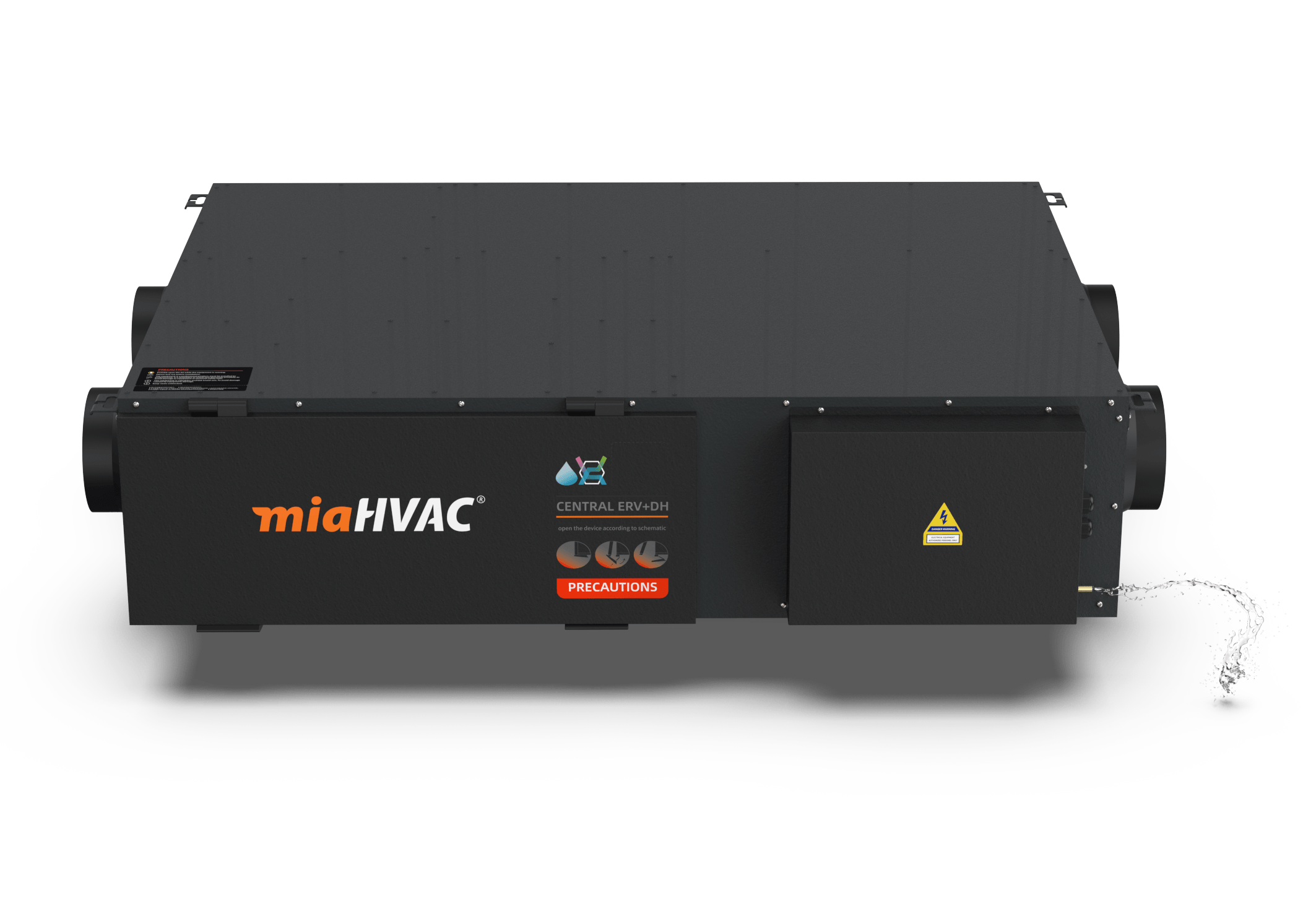

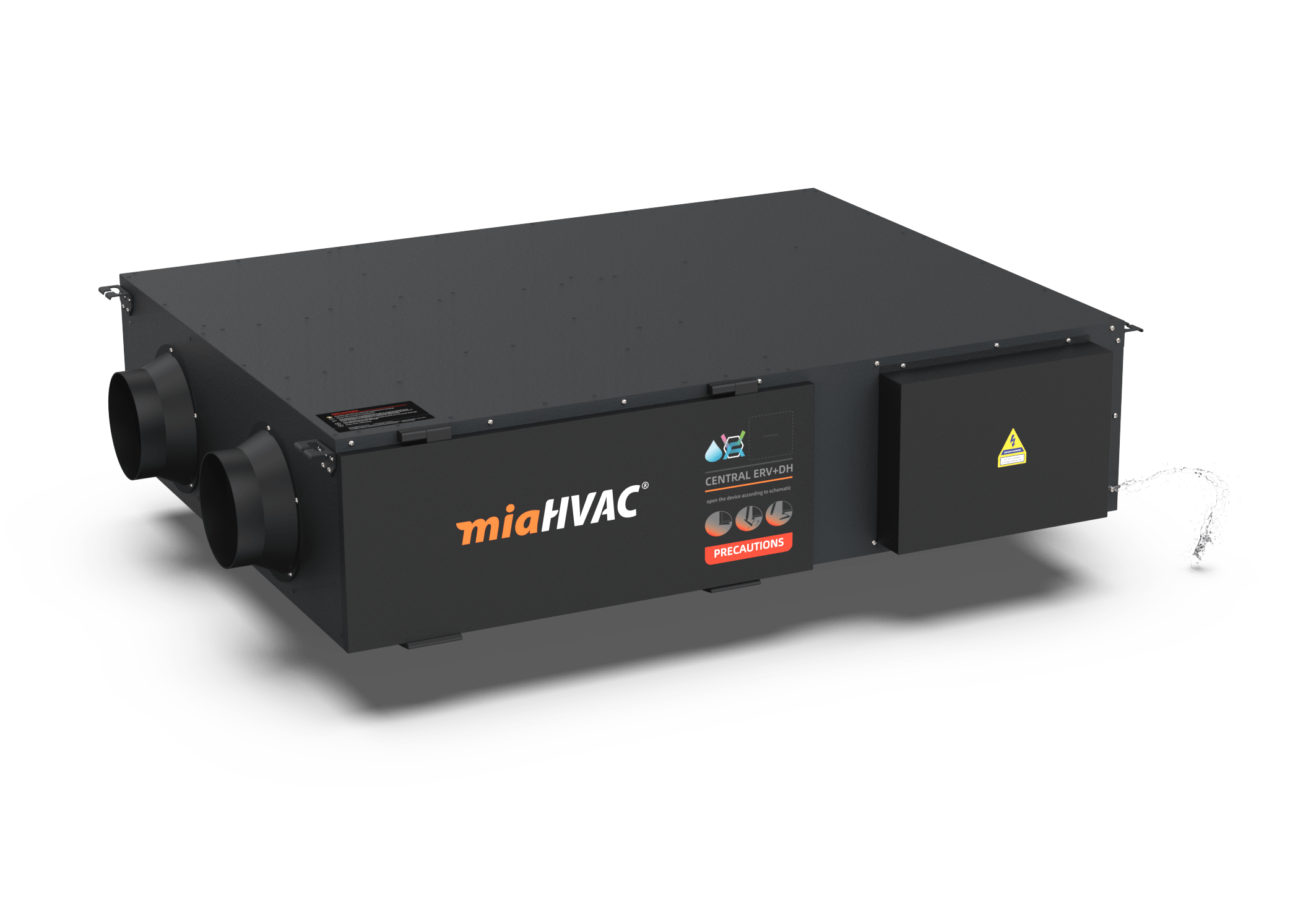

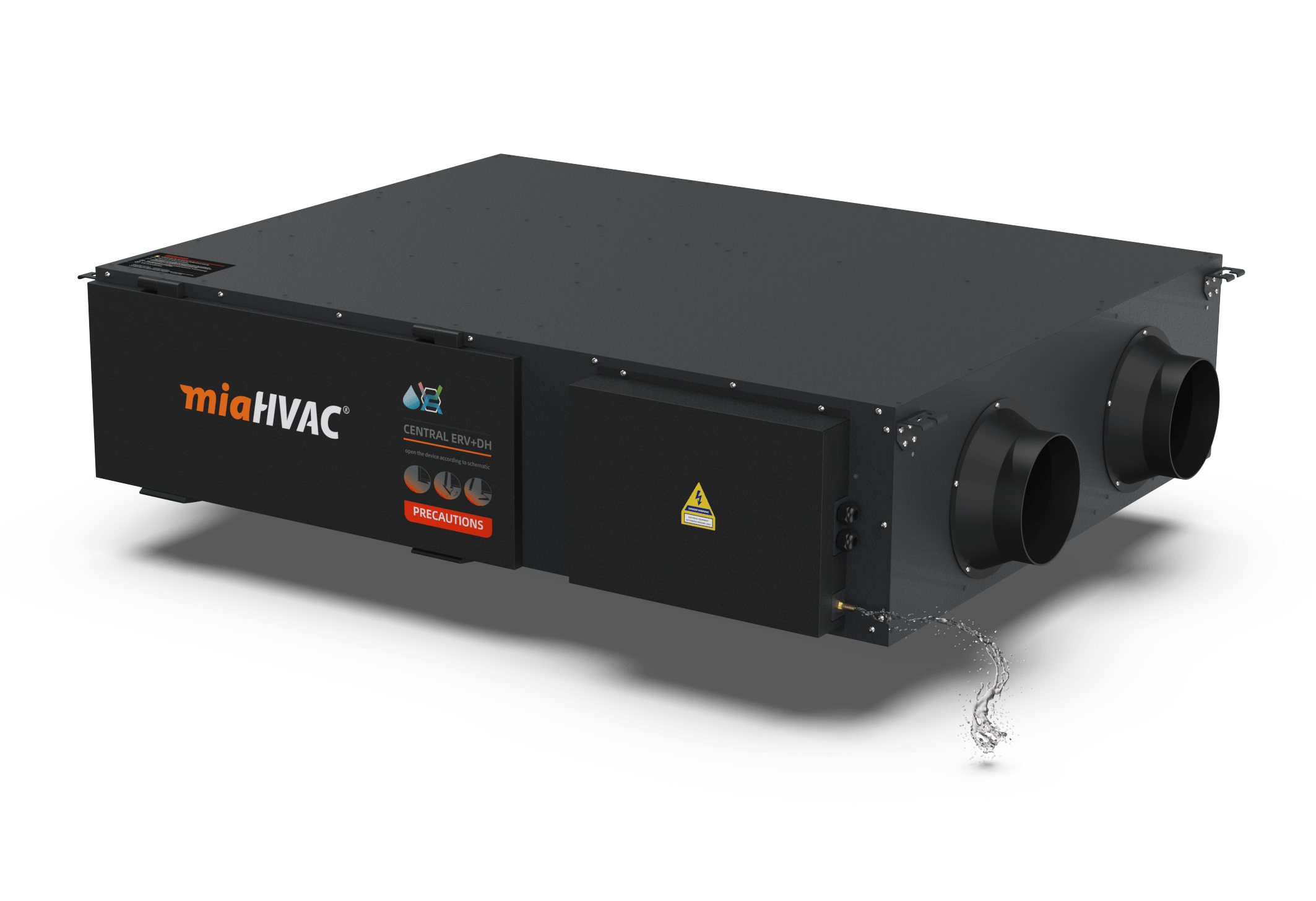

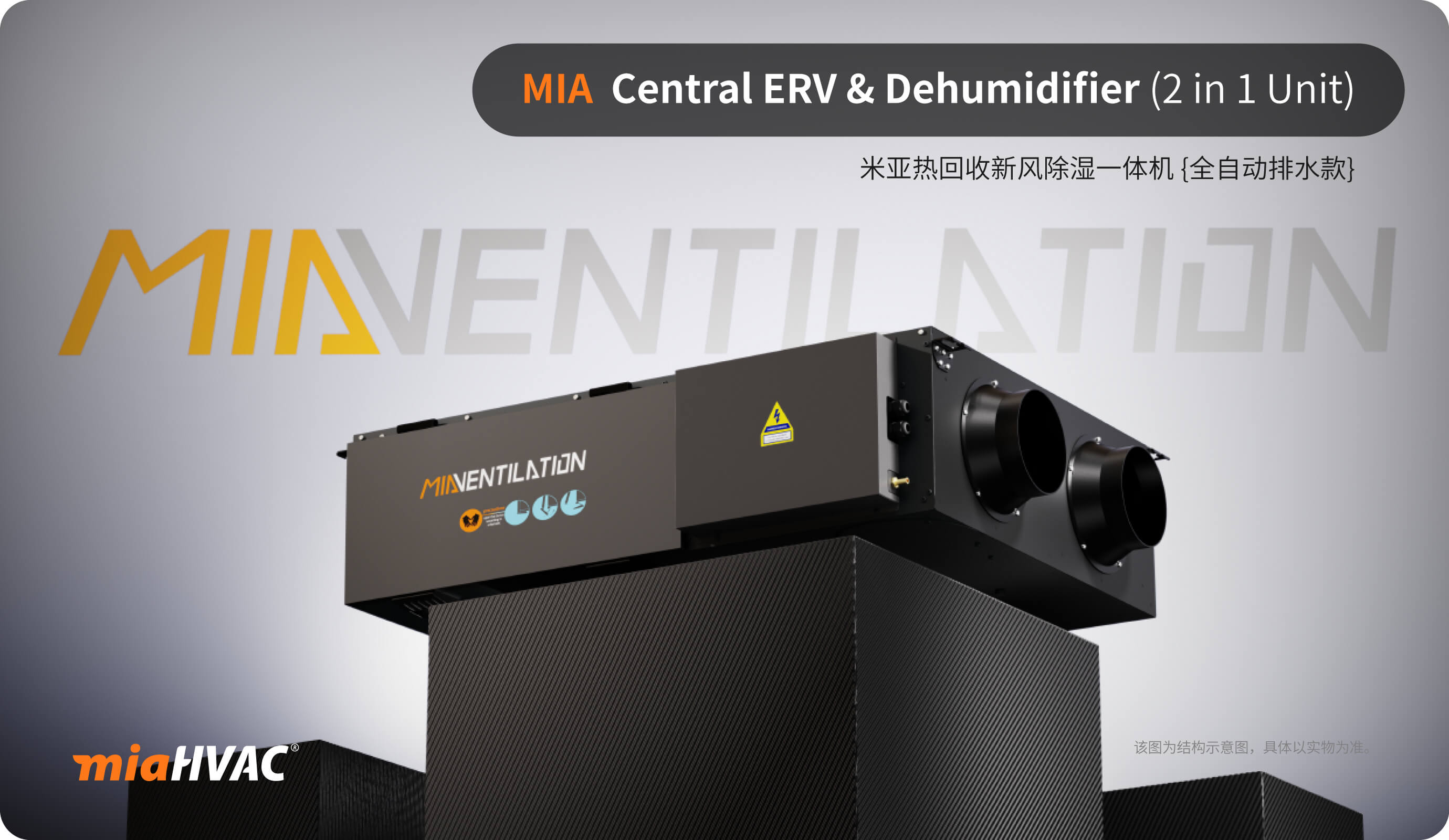

MIA Central ERV & Dehumidifier (2 in 1 Unit)

MIA米亚吊顶热回收新风除湿一体机

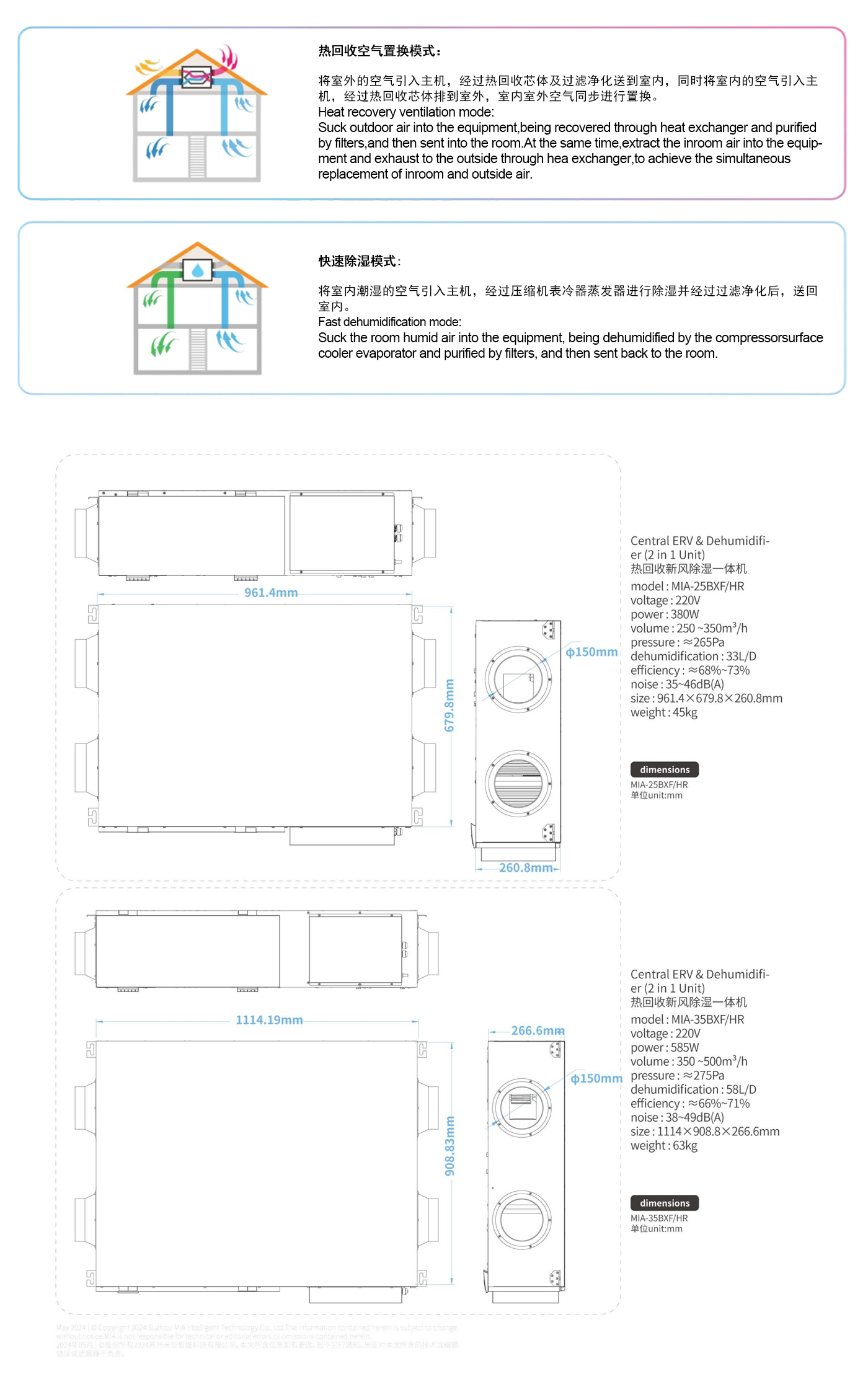

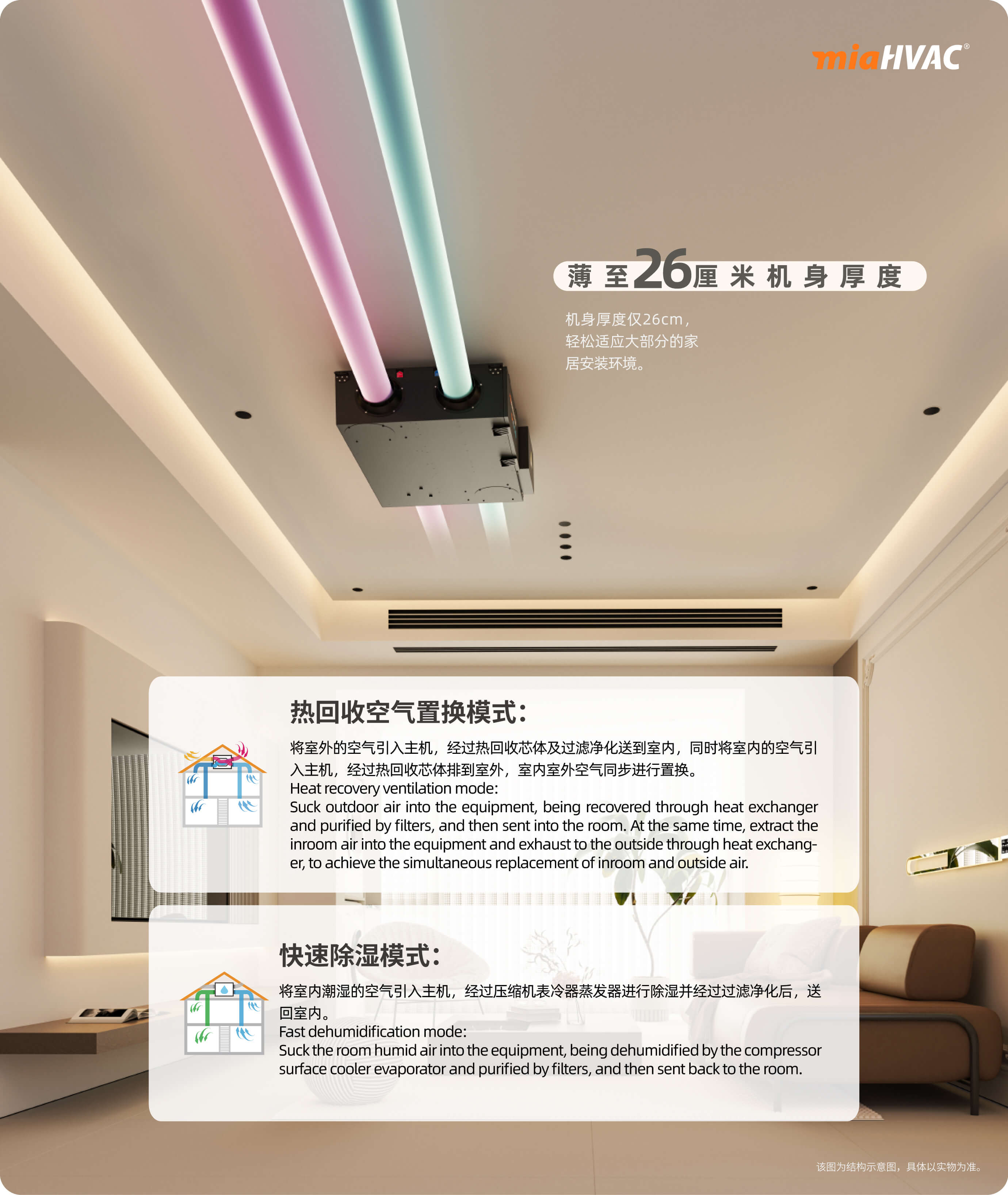

MIA Central ERV & Dehumidifier (2 in 1 Unit): Two working modes can be switched, heat recovery air replacement mode (introducing outdoor air into the host, filtering and purifying it through the heat recovery core and sending it indoors, while introducing indoor air into the host, discharging it outside through the heat recovery core, and synchronously replacing indoor and outdoor air); Fast dehumidification mode (introducing humid indoor air into the host, dehumidifying it through the compressor, surface cooler, evaporator, filtering and purifying it, and then sending it back indoors). The fully heated dehumidifier is equipped with a high-speed high-pressure external rotor fan, and the sufficient high-pressure fan can adapt to various installation environments; Built in DC12V low-voltage silent automatic drainage pump, with a head of over 10m, ensuring effective drainage of water after dehumidification; The stable and reliable equipment filtration section is equipped with washable initial efficiency filters and HEPA high-efficiency filters; The equipment is equipped with sufficient ventilation area to wash the heat exchange core with water; The device can be equipped with an intelligent PM2.5 and CO2 air quality monitoring WIFI controller and a Modbus RS485 communication interface, which can meet high-end personalized needs such as air quality monitoring, remote control, and centralized building control.

MIA米亚吊顶热回收新风除湿一体机：两种工作模式可以切换运行，热回收空气置换模式(将室外的空气引入主机，经过热回收芯体及过滤净化送到室内，同时将室内的空气引入主机，经过热回收芯体排到室外，室内室外空气同步进行置换)；快速除湿模式(将室内潮湿的空气引入主机，经过压缩机表冷器蒸发器进行除湿并经过过滤净化后，送回室内)。全热除湿一体机配备高速大风压外转子风机，充足的大风压风机可适应各种安装环境；内置DC12V低压静音自动排水泵，扬程可达10m以上，保证除湿后将水有力的排出；稳定可靠设备过滤段配备可水洗初效滤网、HEPA高效滤网；设备配备充足通风面积可水洗热交换芯体；设备可选配智能PM2.5、CO2空气质量监测WIFI控制器并配备Modbus RS485通讯接口，可以满足空气质量监测、远程控制、楼宇集中控制等高端个性化需求。

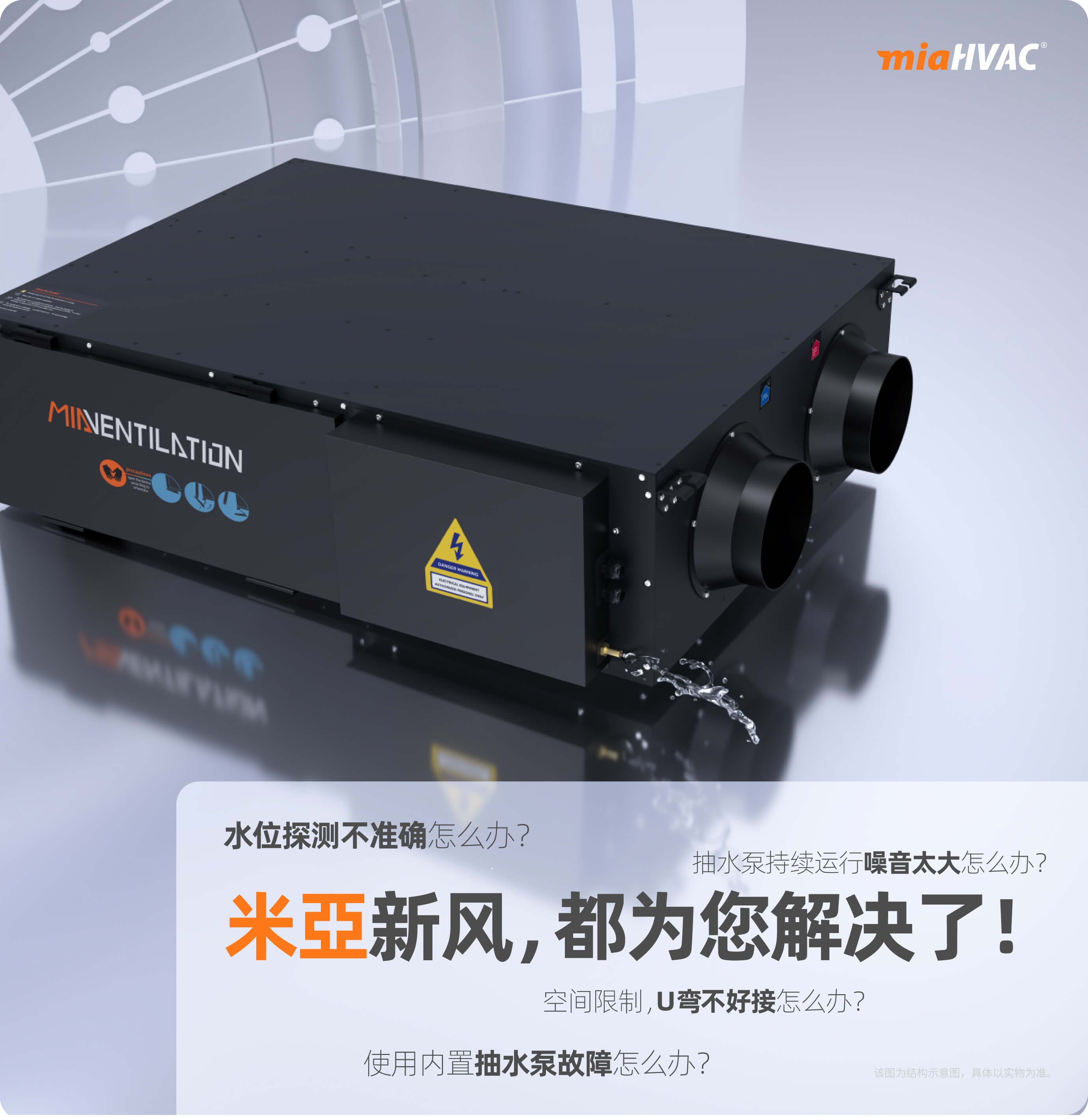

What if the water level detector is inaccurate?

What if the continuously running water pump makes too much noise?

What if the build-in water pump broke down and soaked my ceiling?

What if the U-bend water pipe is difficult to connect when there is limited space?

空间限制，U弯不好接怎么办？

担心使用内置抽水泵故障泡顶怎么办？

担心抽水泵持续运行噪音太大怎么办？

担心水位探测不准确怎么办？

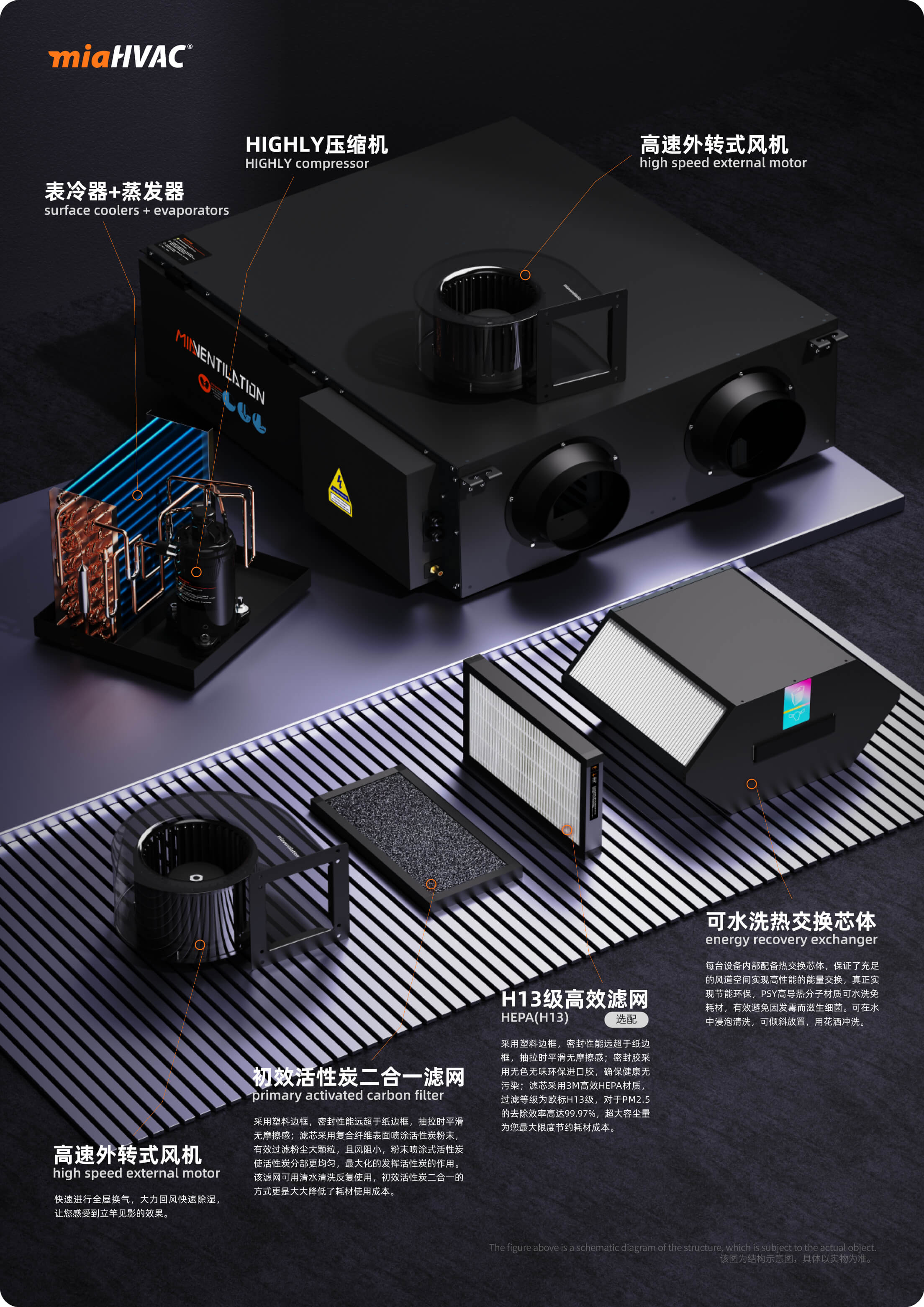

High-speed External Rotor Motor: Adopts high-speed external rotor motor with high wind pressure to meet the demand for powerful air supply and exhaust.

高速外转式电机：采用高速外转子电机，大风压可满足强力送/排风需求。

Built in DC12V low-voltage silent automatic drainage pump, with a head of over 10m, ensuring effective drainage of water after dehumidification.

内置DC12V低压静音自动排水泵，扬程可达10m以上，保证除湿后将水有力的排出。

High Efficiency Particulate Air (HEPA-H13) Filter：The thickness of this filter is only 3cm. The plastic frame has higher sealing than paper frame, and we use the environmental friendly imported sealant, no color & odor, to ensure healthy and avoid pollution. The raw material of this HEPA filter is from 3M, European standard H13 level. PM2.5 removal rate can be up to 99.97%, and the large dust holding capacity can save the total cost of consumables.

H13级HEPA高效滤网：采用塑料边框，密封性能远超于纸边框，抽拉时平滑无摩擦感；密封胶采用无色无味环保进口胶，确保健康无污染；滤芯采用3M高效HEPA材质，过滤等级为欧标H13级，对于PM2.5的去除效率高达99.97%，超大容尘量为您最大限度节约耗材成本。

Primary Activated Carbon Filter：The plastic frame of this filter seals better than the paper frame, and it is only 2cm thick. The filter is made of composite fiber sprayed with activated carbon powder that can filter out dust particle efficiently. The wind resistance of this filter is very low. The method of spraying makes the activated carbon powder more evenly distributed, which can maximize the effect of activated carbon. This washable filter can be used repeatedly and the combination of primary filter with activated carbon can greatly save your cost of consumables.

初效活性炭二合一滤网：采用塑料边框，密封性能远超于纸边框，抽拉时平滑无摩擦感；滤芯采用复合纤维表面喷涂活性炭粉末，有效过滤粉尘大颗粒，且风阻小，粉末喷涂式活性炭使活性炭分部更均匀，最大化的发挥活性炭的作用。该滤网可用清水清洗反复使用，初效活性炭二合一的方式更是大大降低了耗材使用成本。

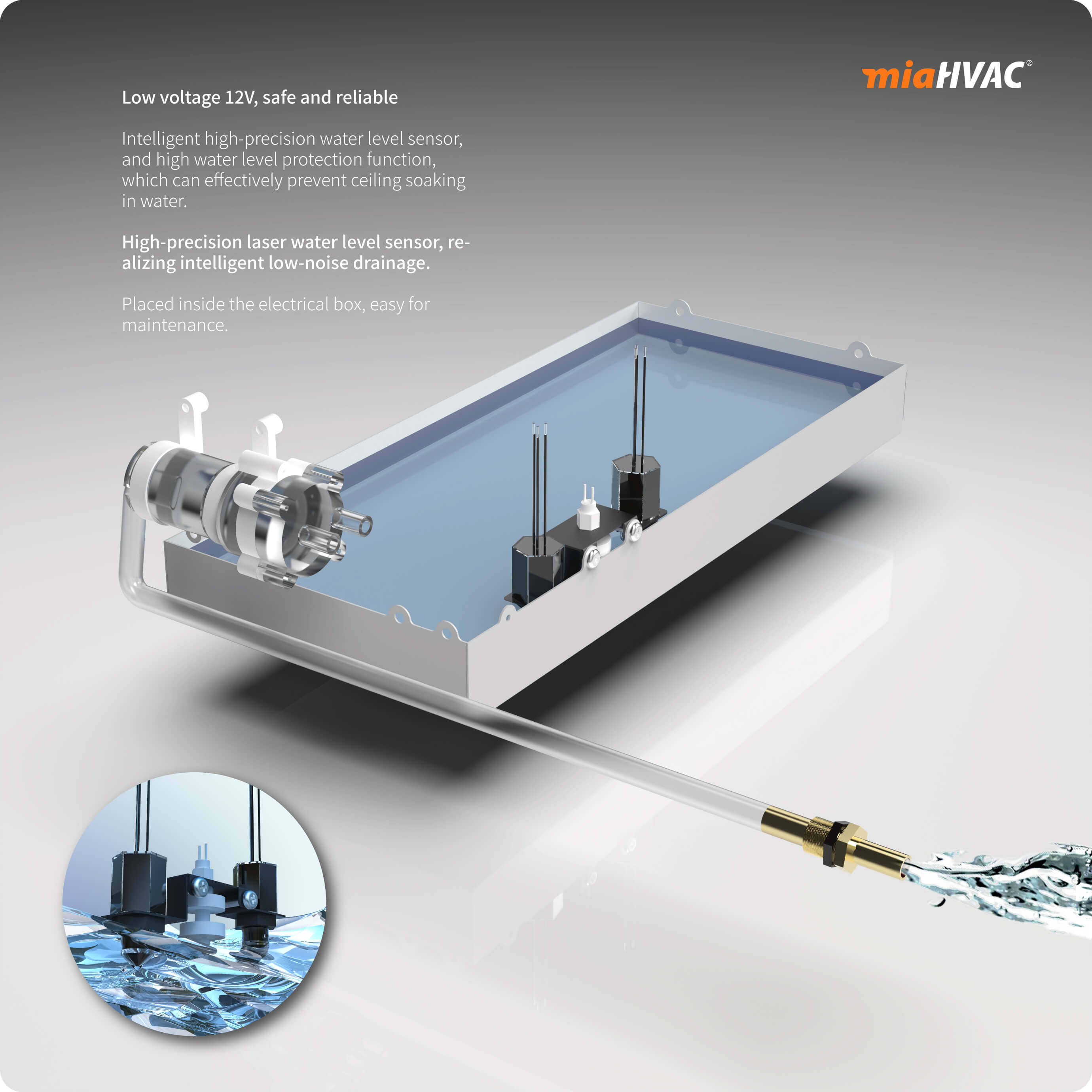

Built-in fully automatic water pump

• Low voltage 12V, safe and reliable.

• Intelligent high-precision water level sensor, and high water level protection function, which can effectively prevent ceiling soaking in water.

• High-precision laser water level sensor, realizing intelligent low-noise drainage.

• Placed inside the electrical box, easy for maintenance.

内置式全自动抽水泵：

• 低压12V，安全可靠

• 置于电器盒内部，维护便捷

• 配合高精度激光水位传感器，智能低噪音排水

• 智能高精度水位传感器，高水位保护功能，有效防止泡顶

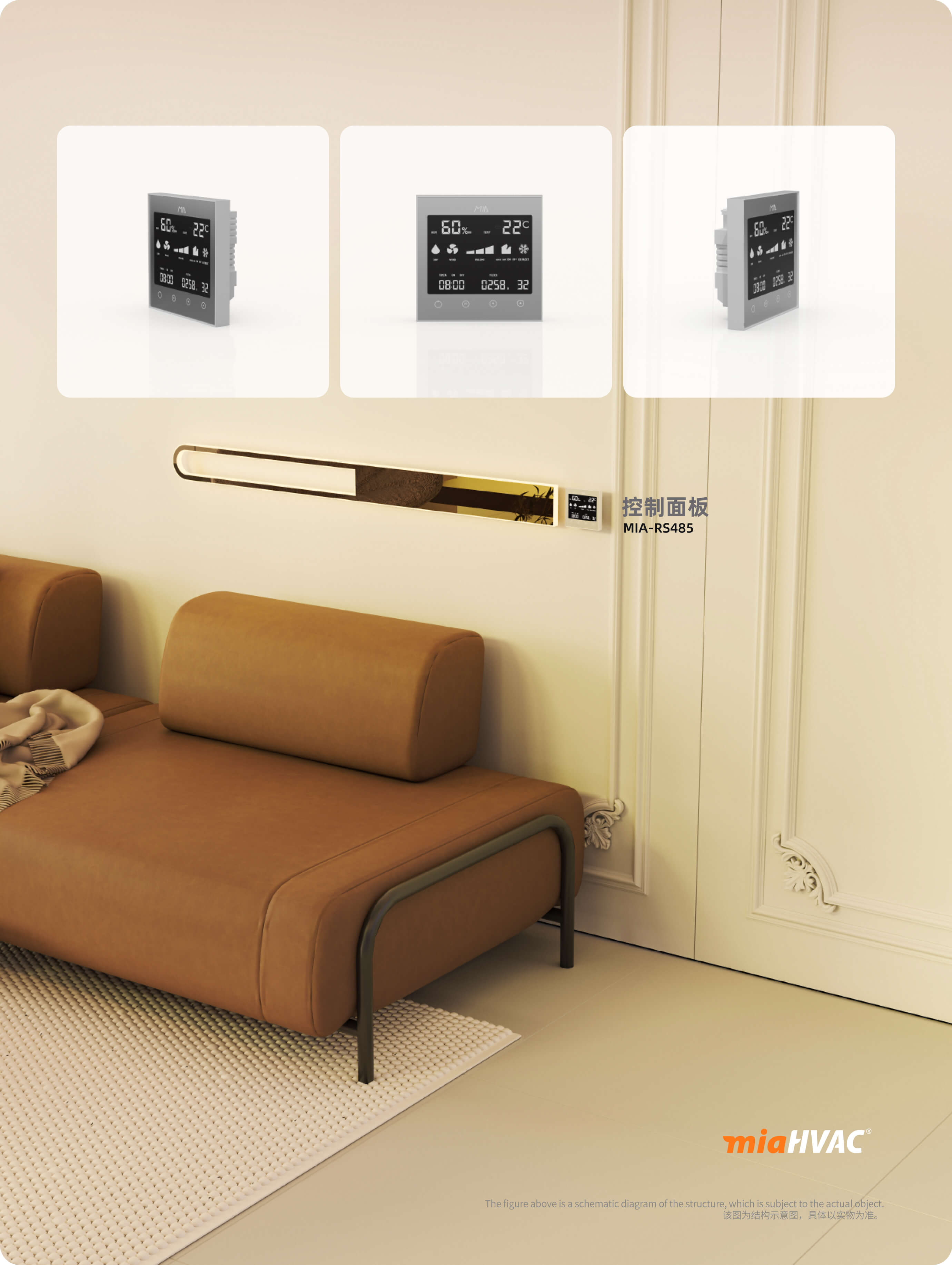

Support optional intelligent WIFI controller, PM2.5，CO2，TVOC， Real time monitoring of temperature and humidity, equipped with RS485 to support centralized control of buildings, can meet the needs of various usage scenarios.

支持选配智能WIFI控制器，PM2.5，CO2，TVOC，温湿度实时监测，选配RS485可支持楼宇集中控制，可以满足各种使用场景需求。
