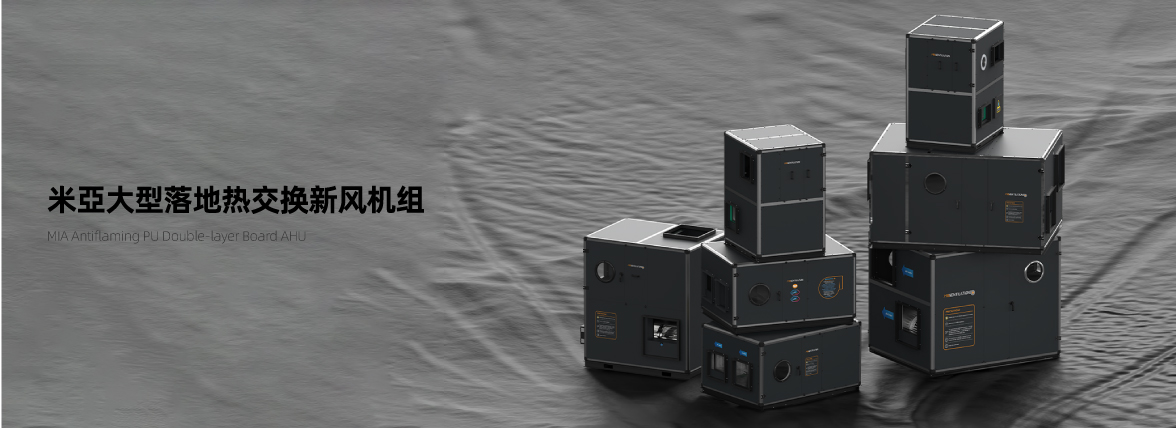

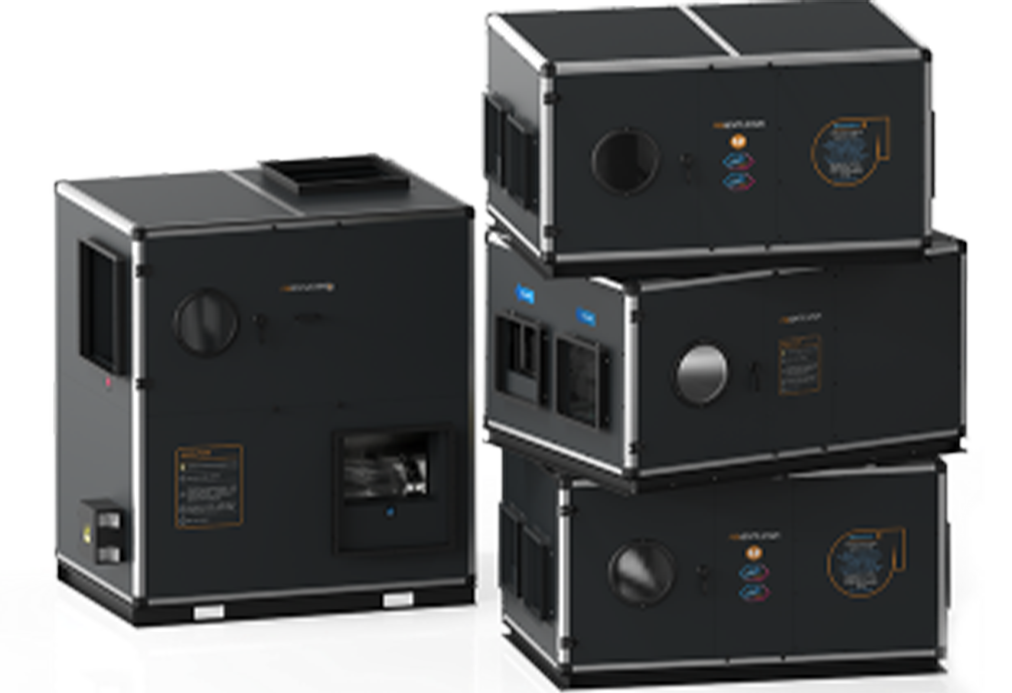

Floor-standing Antiflanming Double-layer Borad AHU {9000m³/h ~50000m³/h}

大型阻燃双层板热回收新风机组

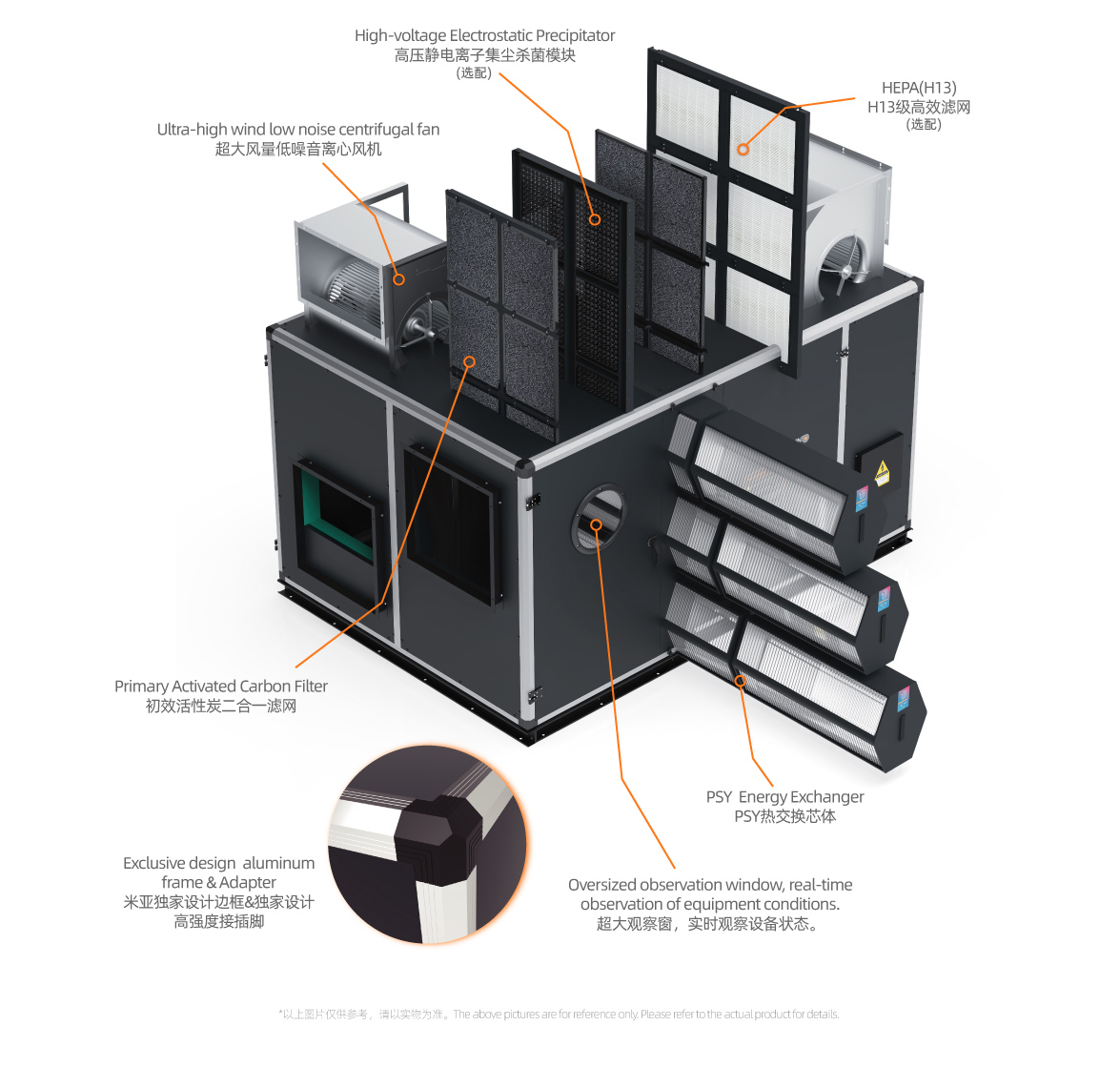

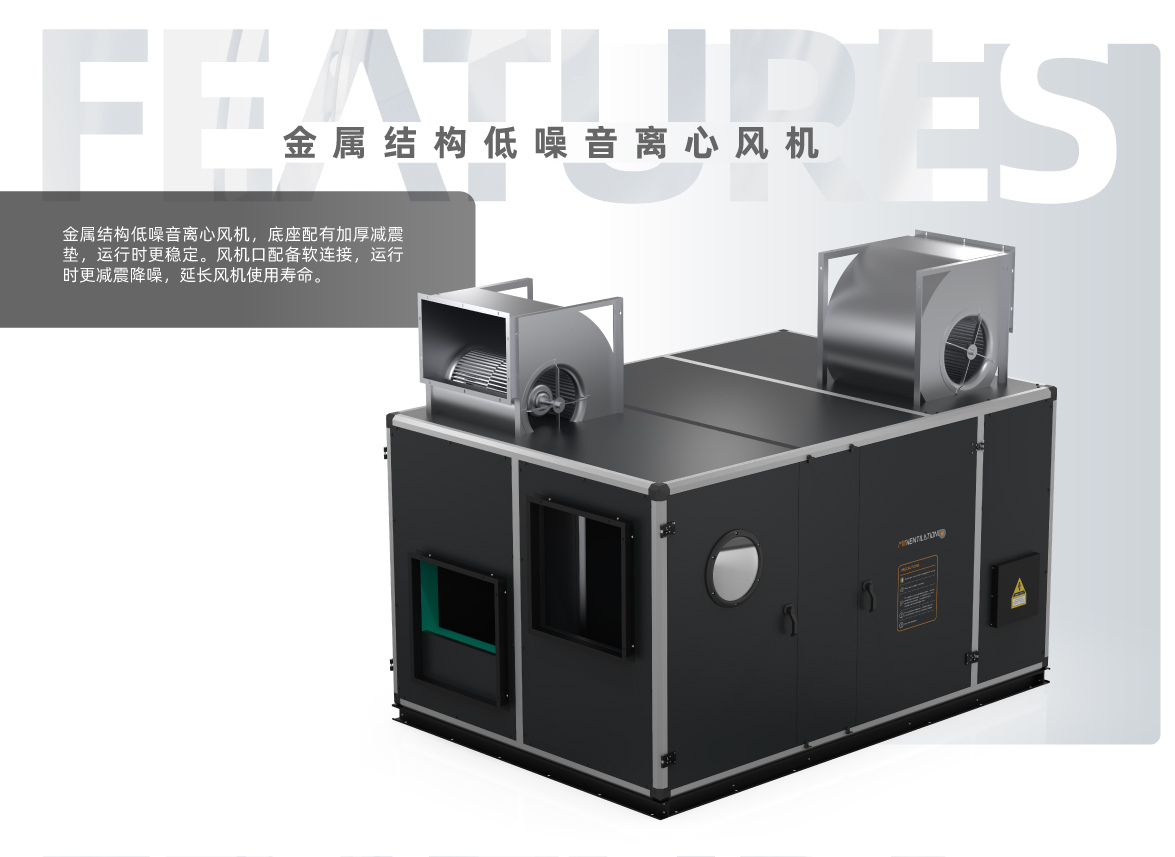

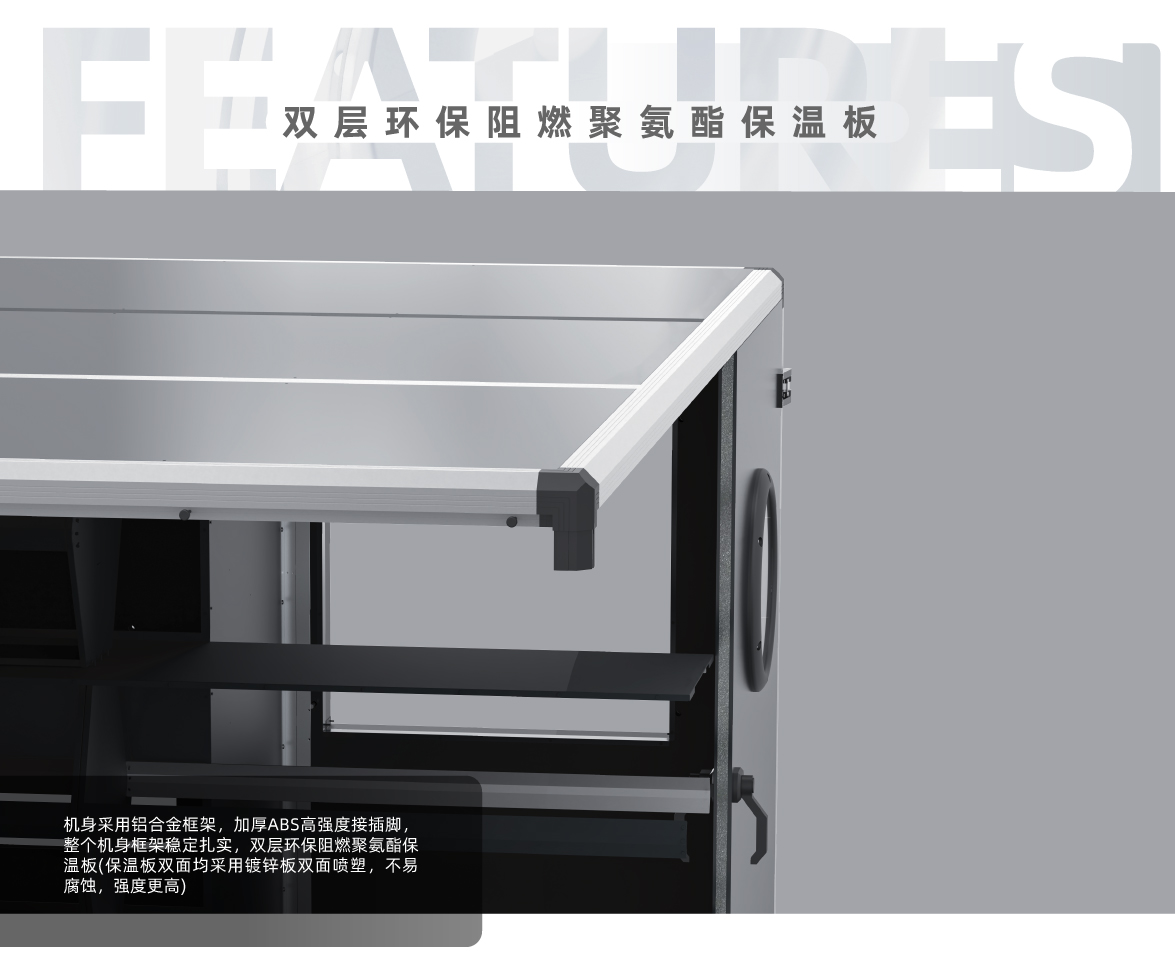

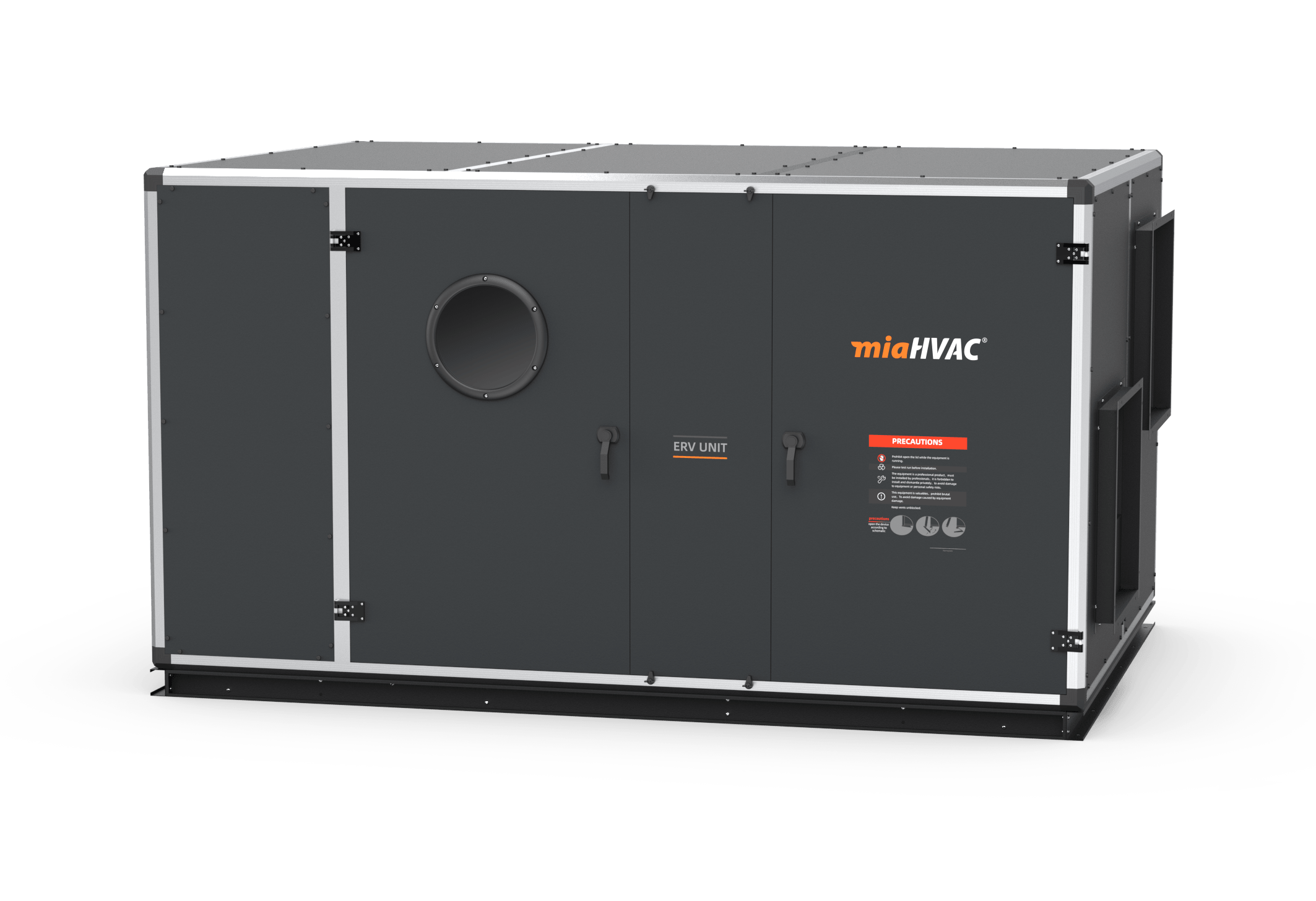

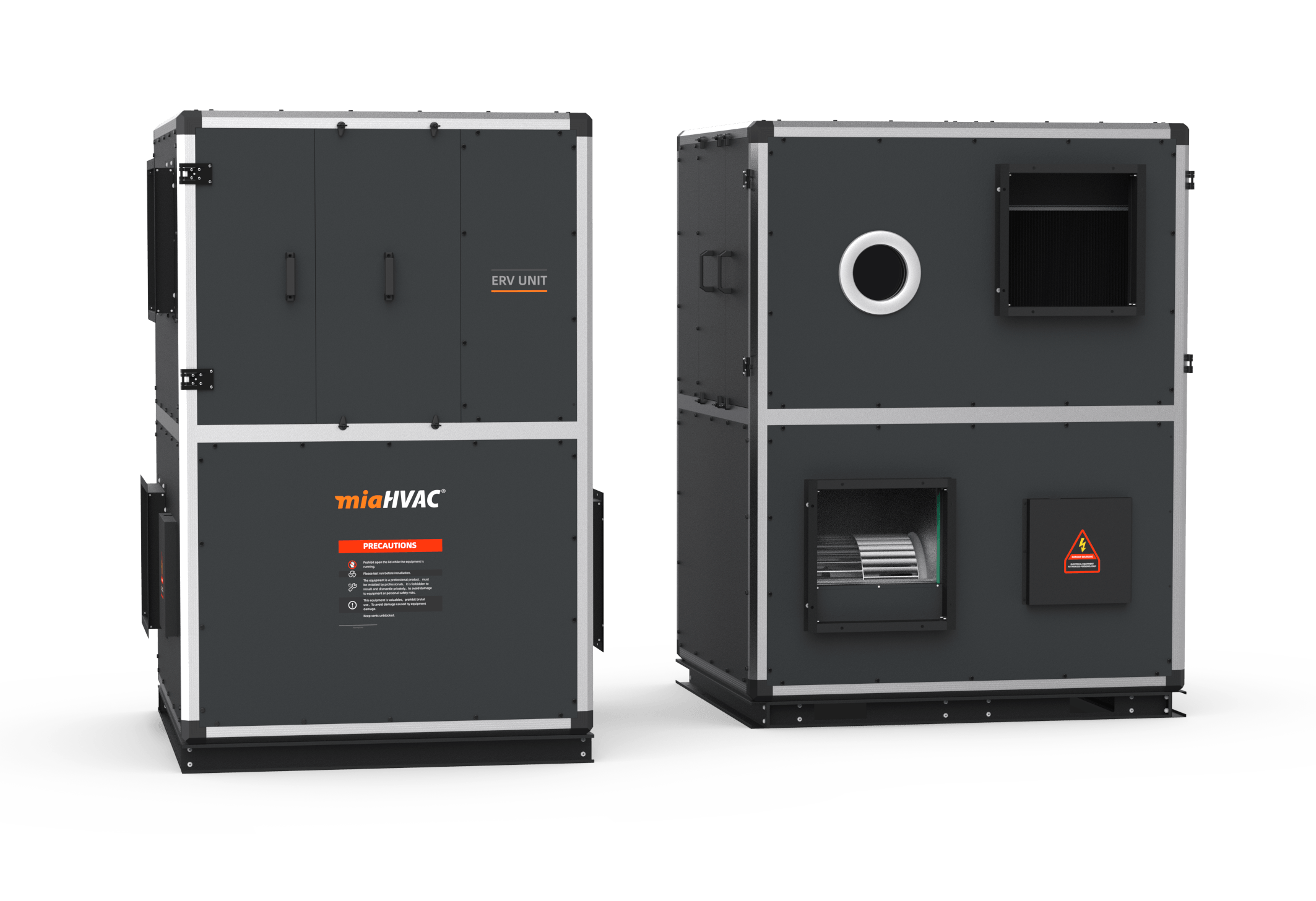

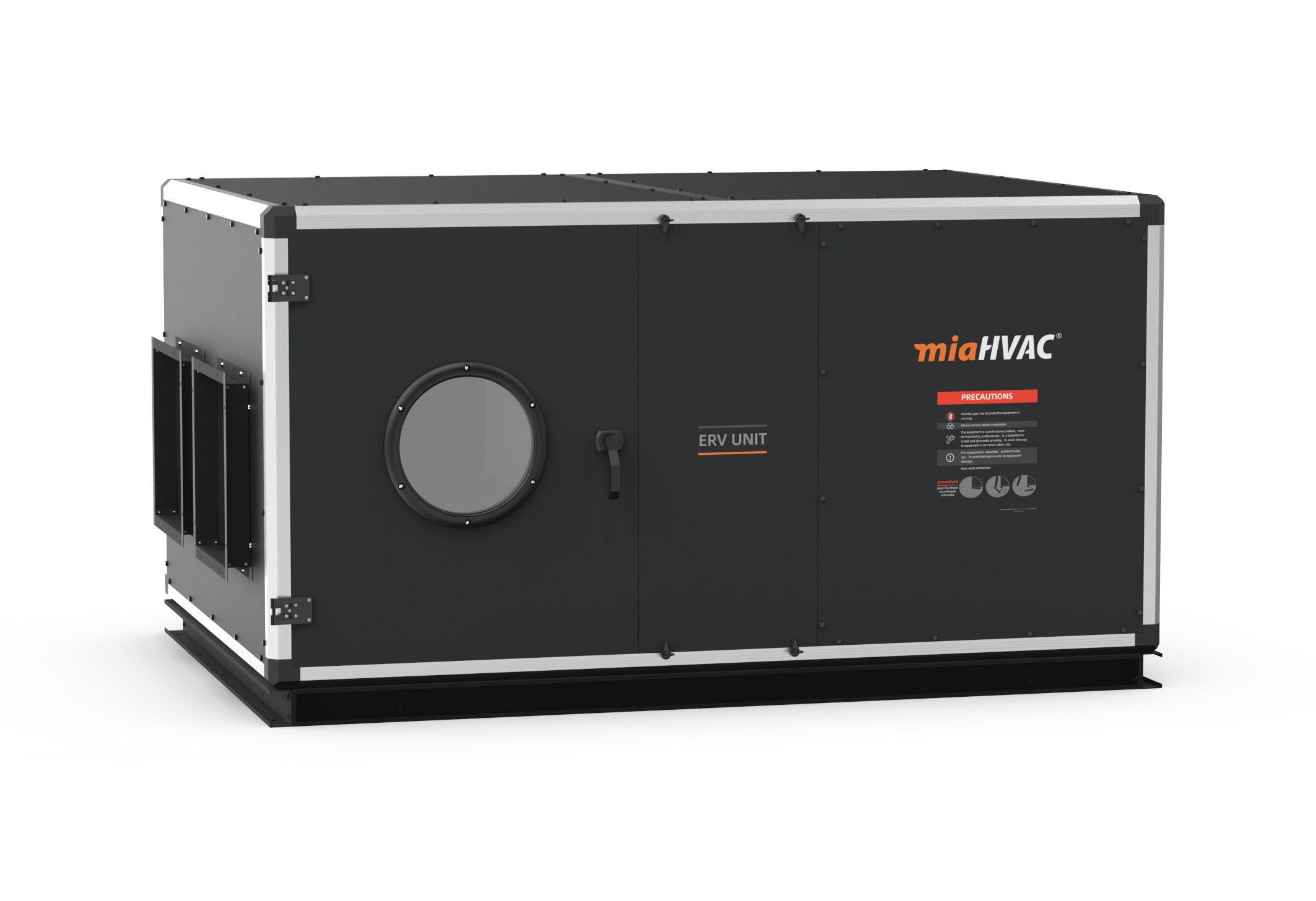

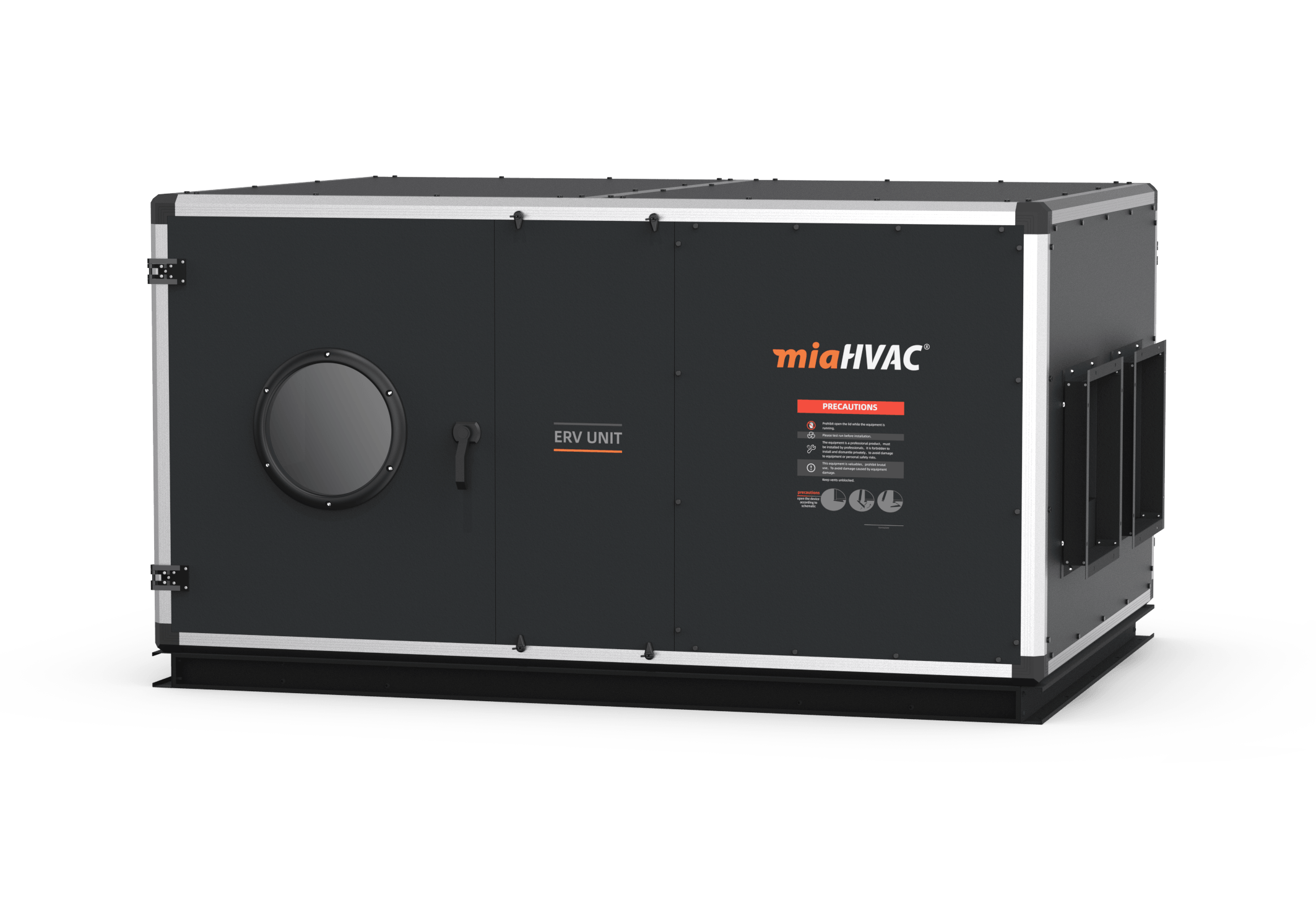

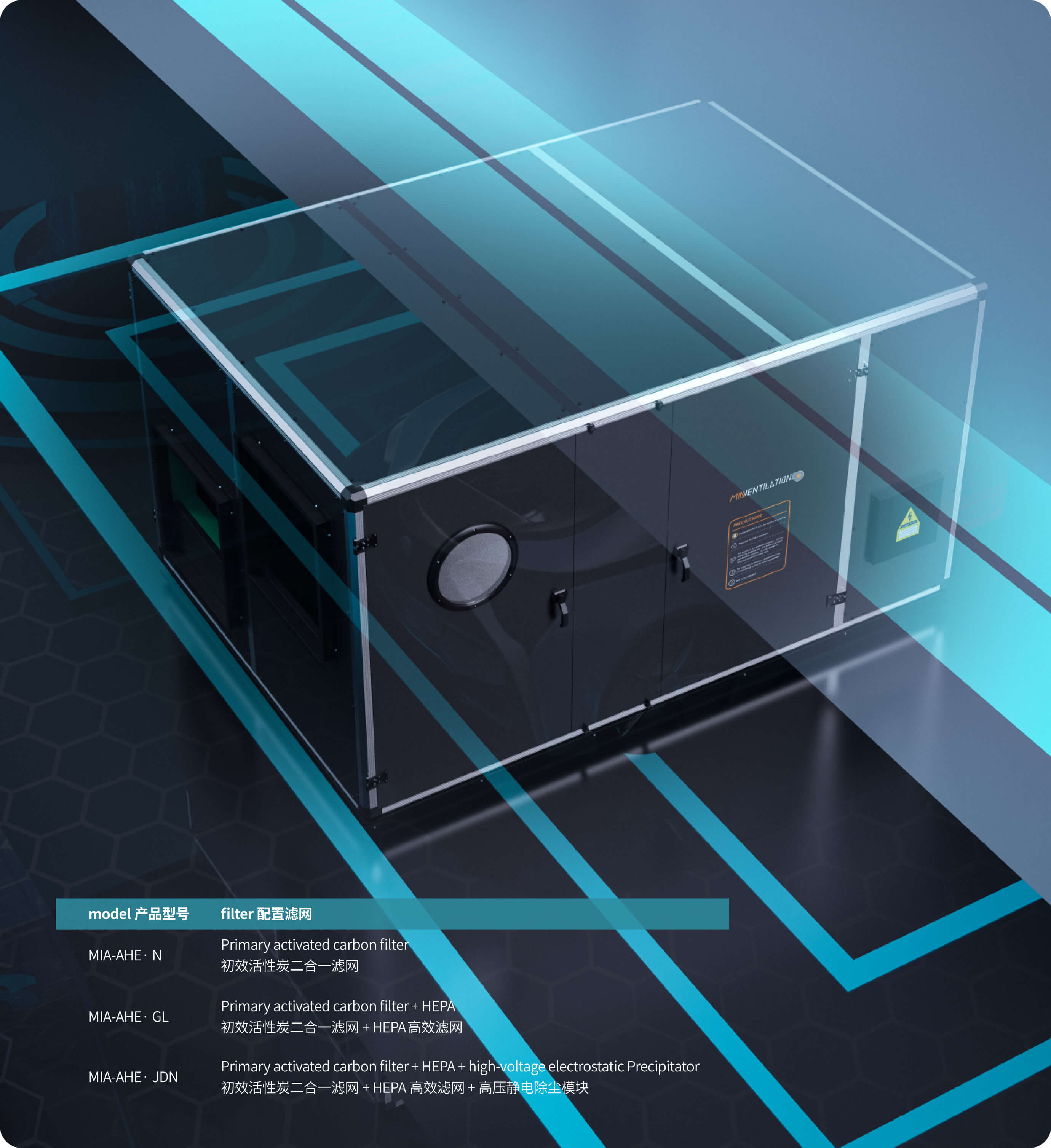

MIA Large Double-Layer Plate Heat Recovery Fresh Air Unit: It draws outdoor air into the equipment, filters it, exchanges energy, and then delivers it indoors. Simultaneously, indoor air is extracted, undergoes energy recovery, and is discharged outdoors, achieving whole-house air purification and replacement while maintaining indoor temperature and humidity. The box of the full heat exchange unit adopts an aluminum frame structure with double-layer thickened galvanized steel plates, sandwiched with high-density fireproof cotton, ensuring high overall box strength, superior insulation performance, and safety reliability. Equipped with a high-speed large air pressure 380V fan, it can optionally be paired with a frequency converter for stepless speed adjustment in either simultaneous or separate supply/exhaust modes. An optional smart PM2.5 and CO2 air quality monitoring WiFi controller, along with a Modbus RS485 communication interface, allows the unit to adapt to various installation environments and meet advanced commercial needs such as air quality monitoring, remote control, and centralized building management. The filtration section can be optionally fitted with washable pre-filters and HEPA high-efficiency filters. Multiple washable heat exchange cores are installed across the entire air duct cross-section, ensuring ample ventilation area and reliable energy recovery efficiency.

MIA米亚大型双层板热回收新风机组：将室外的空气抽入设备中，进行过滤，能量交换后送入室内，同时将室内的空气抽入设备中，进行能量回收后排出室外，实现在保持室内温湿度的同时进行全屋空气净化置换。全热交换机组箱体使用铝框结构双层加厚镀锌板，中间夹高密度防火棉，整体箱体强度高，保温性能硬核，并且安全可靠；配备高速大风压380V风机，可选配变频器进行送/排风同时或分别无级调速，可选配智能PM2.5、CO2空气质量监测WIFI控制器并配备Modbus RS485通讯接口，充足的大风压风机可适应各种安装环境，并且可以满足空气质量监测、远程控制、楼宇集中控制等高端个性化商用需求；设备过滤段可选配可水洗初效滤网、HEPA高效滤网；设备中配备多个可水洗热交换芯体横贯整个风道截面，保证了充足的通风面积和可靠的能量回收效率。

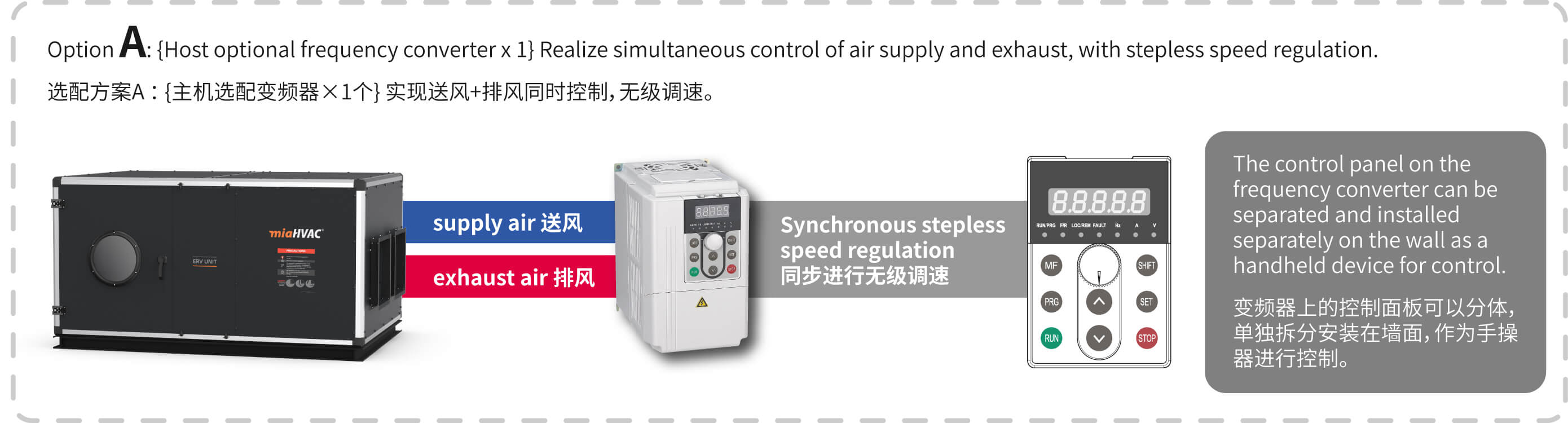

Option A: {Host optional frequency converter x 1} Realize simultaneous control of air supply and exhaust, with stepless speed regulation.

选配方案A ： {主机选配变频器×1个} 实现送风+排风同时控制，无级调速。

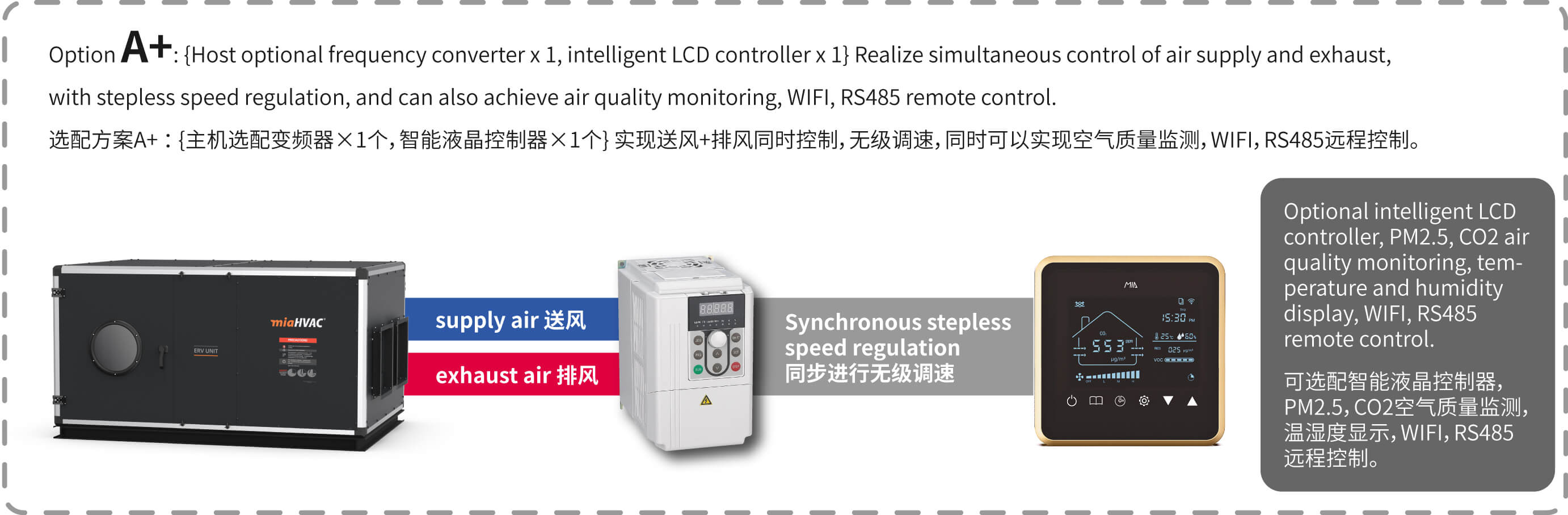

Option A+: {Host optional frequency converter x 1, intelligent LCD controller x 1} Realize simultaneous control of air supply and exhaust, with stepless speed regulation, and can also achieve air quality monitoring, WIFI, RS485 remote control.

选配方案A+ ： {主机选配变频器×1个，智能液晶控制器×1个} 实现送风+排风同时控制，无级调速，同时可以实现空气质量监测，WIFI，RS485远程控制。

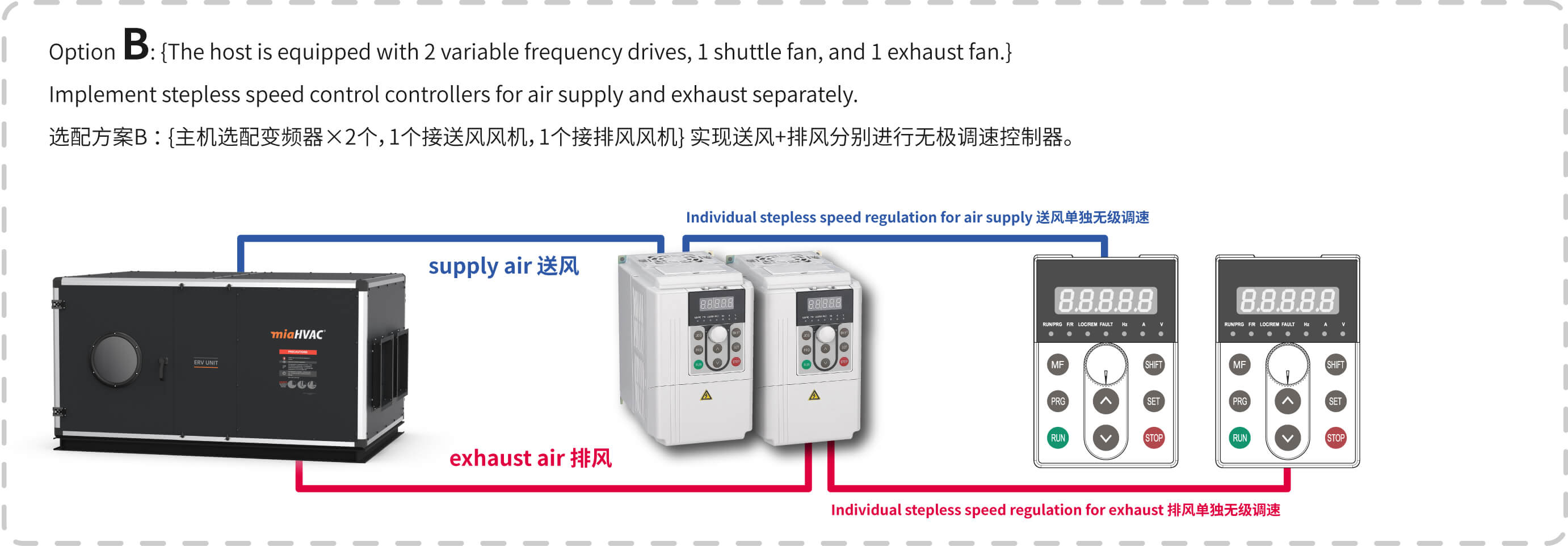

Option B: {The host is equipped with 2 variable frequency drives, 1 shuttle fan, and 1 exhaust fan.}

Implement stepless speed control controllers for air supply and exhaust separately.

选配方案B ： {主机选配变频器×2个，1个接送风风机，1个接排风风机} 实现送风+排风分别进行无极调速控制器。

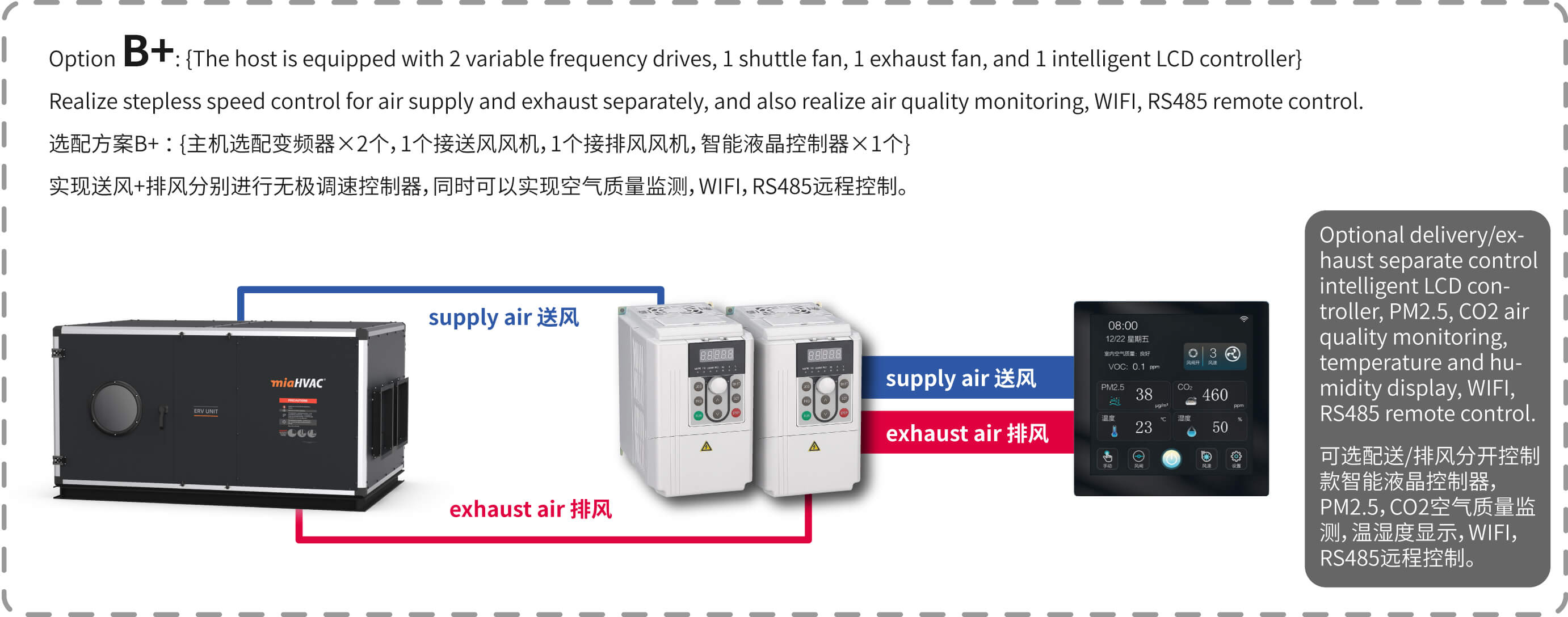

Option B+: {The host is equipped with 2 variable frequency drives, 1 shuttle fan, 1 exhaust fan, and 1 intelligent LCD controller}

Realize stepless speed control for air supply and exhaust separately, and also realize air quality monitoring, WIFI, RS485 remote control.

选配方案B+ ： {主机选配变频器×2个，1个接送风风机，1个接排风风机，智能液晶控制器×1个}

实现送风+排风分别进行无极调速控制器，同时可以实现空气质量监测，WIFI，RS485远程控制。

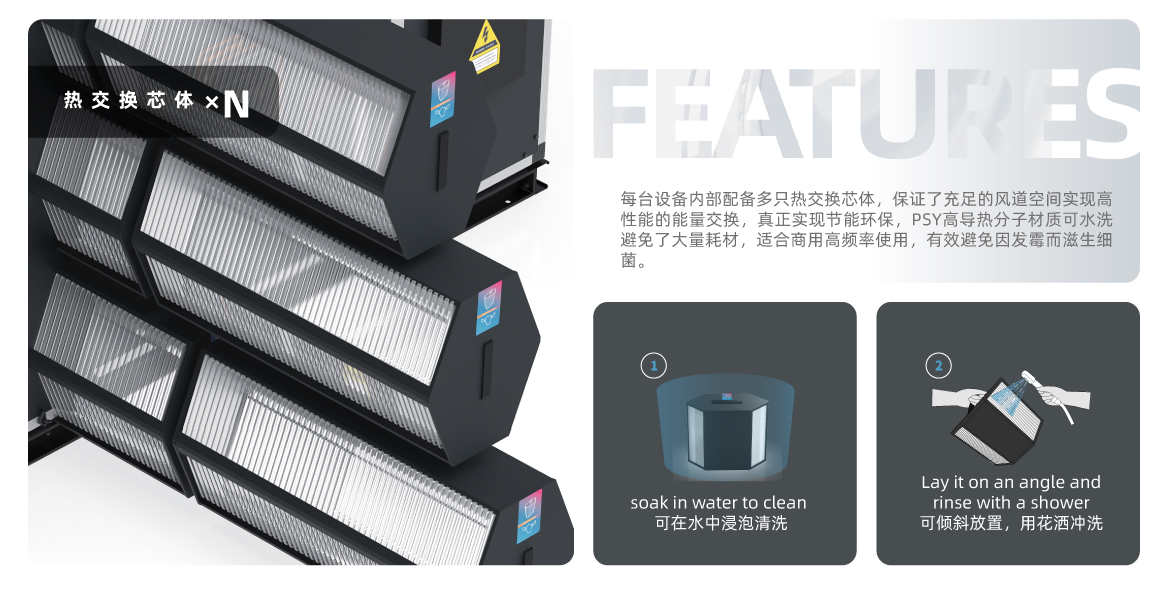

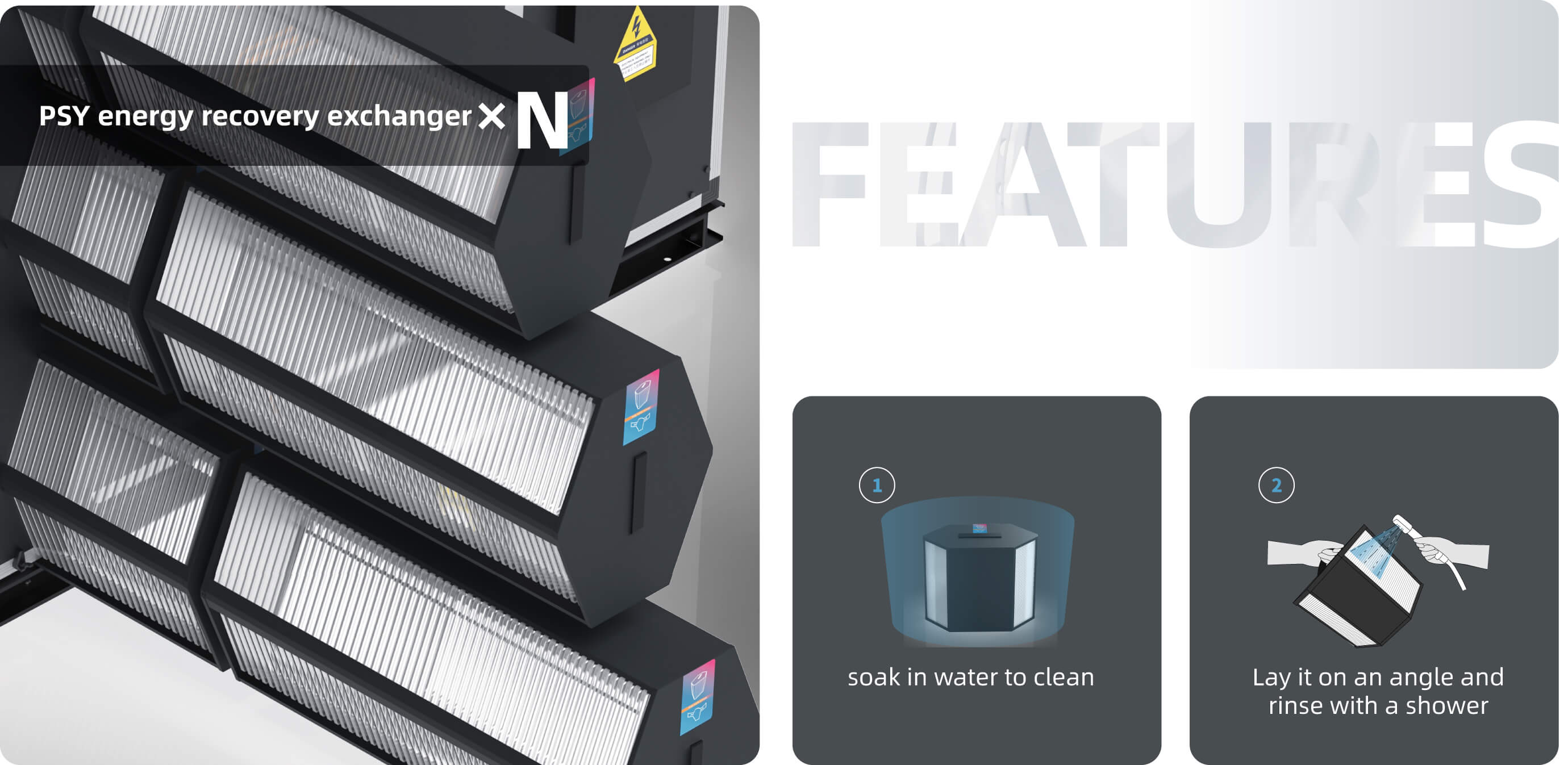

Each device is equipped with multiple heat exchange cores inside, ensuring sufficient air duct space for high-performance energy exchange, truly achieving energy conservation and environmental protection. PSY high thermal conductivity molecular material can be washed with water to avoid a large amount of consumables, suitable for commercial high-frequency use, effectively avoiding the growth of bacteria due to mold.

每台设备内部配备多只热交换芯体，保证了充足的风道空间实现高性能的能量交换，真正实现节能环保，PSY高导热分子材质可水洗避免了大量耗材，适合商用高频率使用，有效避免因发霉而滋生细菌。

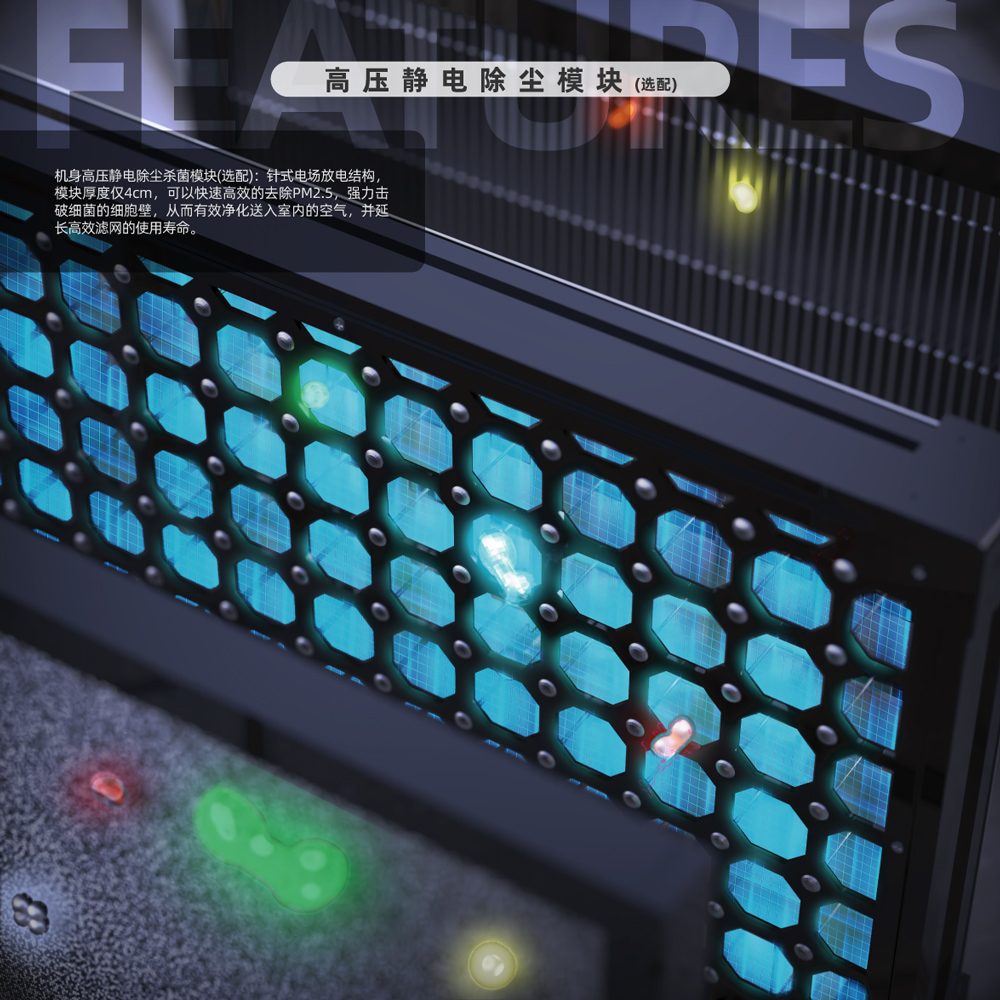

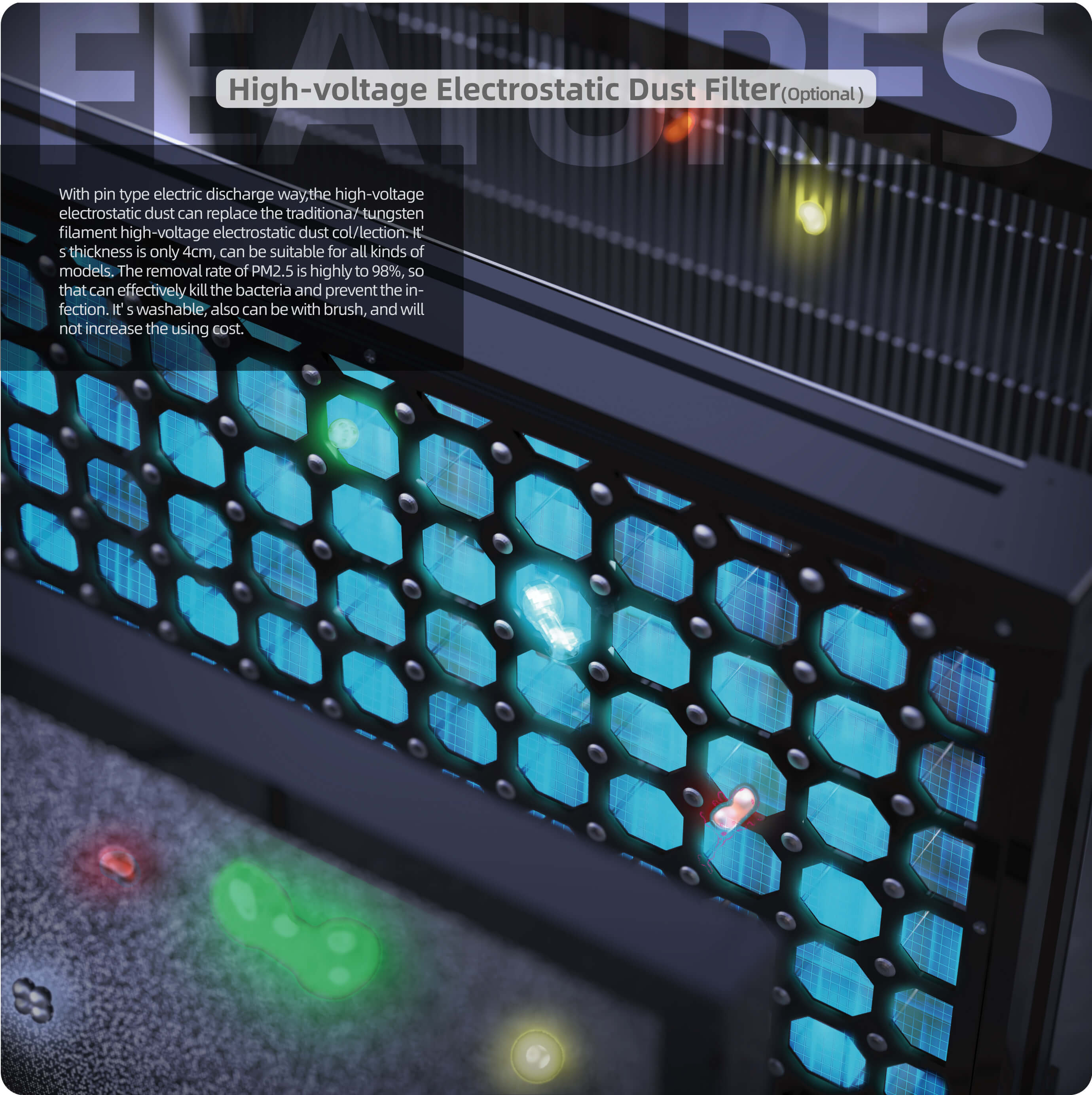

High-voltage Electrostatic Precipitator：The high-voltage electrostatic precipitator adopts the pin-type electric field discharge method to replace the traditional tungsten wire high-voltage removal method. The thickness is only 4cm, suitable for various kinds of our models, PM2.5 removal rate is highly to 98%. Also it can effectively kill bacteria to prevent the infection. It can be washed or cleaned with brush, no need to be replaced, greatly save the cost.

高压静电除尘杀菌模块：采用针式电场放电方式，代替传统钨丝高压静电集尘方式，模块厚度仅为4cm，可灵活适用于各种机型，对于PM2.5的去除效率高达98%。维护时可用清水进行湿洗，也可以用毛刷刷去集尘格中的灰尘，无耗材产生可反复使用，无需担心使用成本。

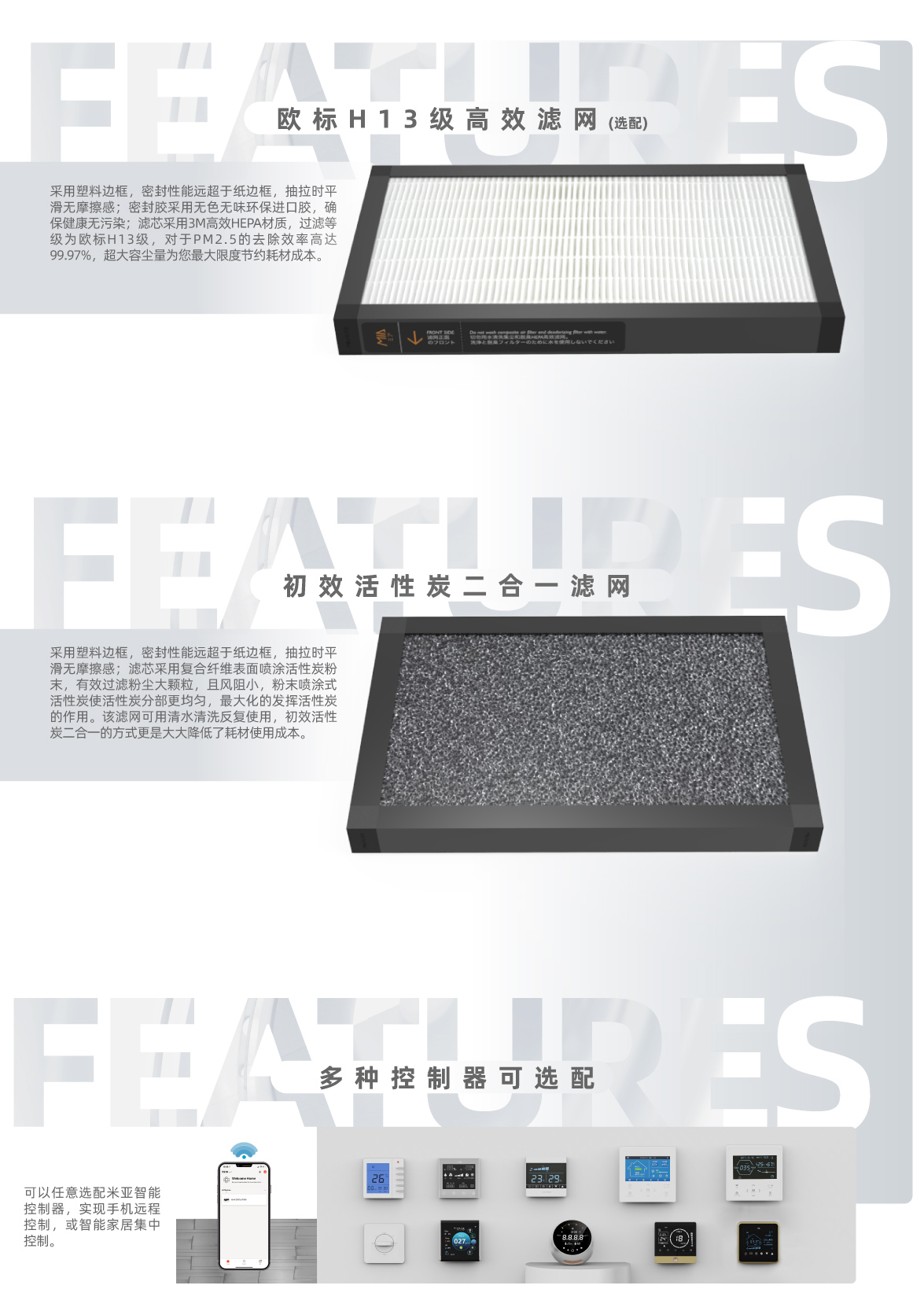

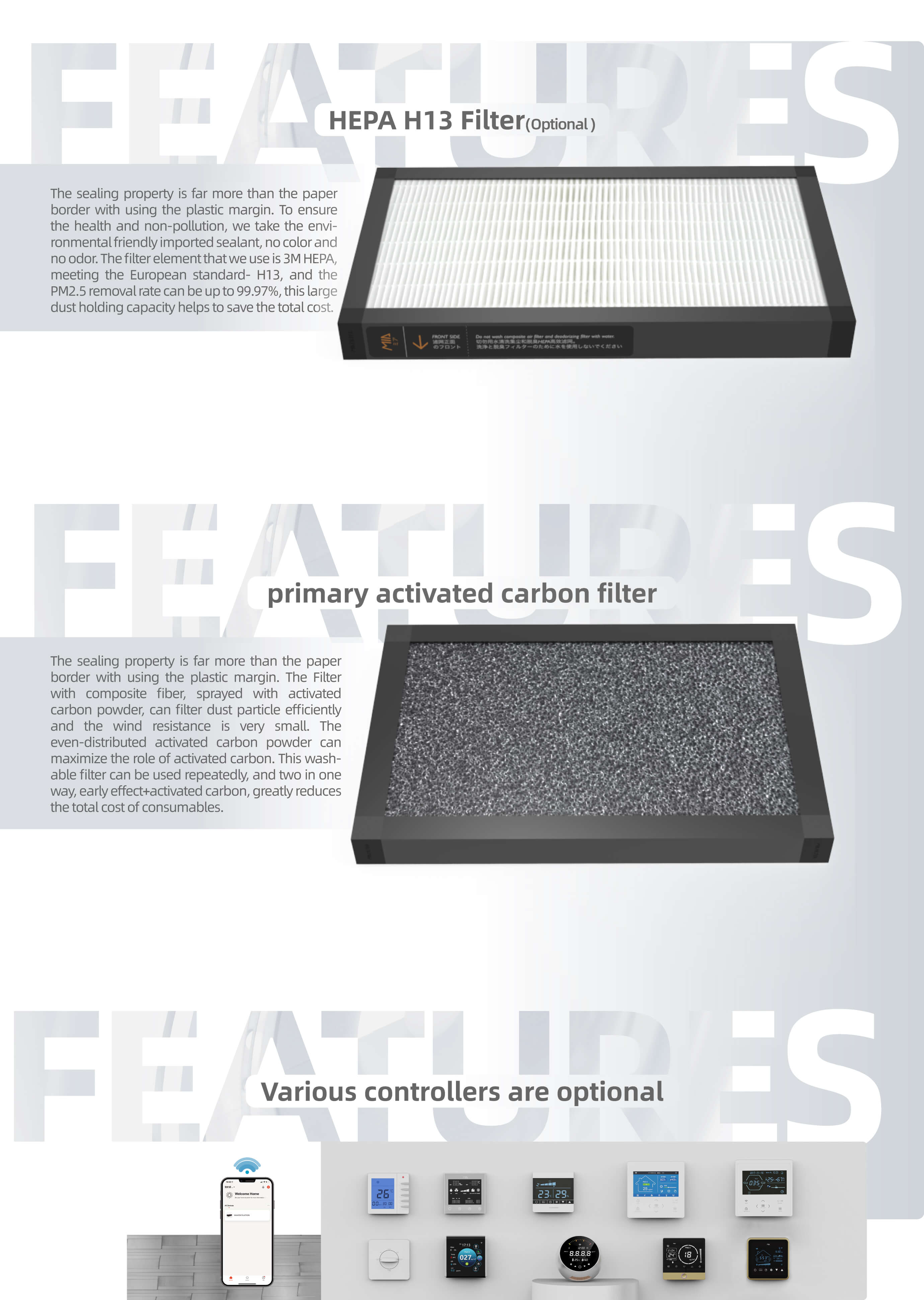

High Efficiency Particulate Air (HEPA-H13) Filter：The thickness of this filter is only 3cm. The plastic frame has higher sealing than paper frame, and we use the environmental friendly imported sealant, no color & odor, to ensure healthy and avoid pollution. The raw material of this HEPA filter is from 3M, European standard H13 level. PM2.5 removal rate can be up to 99.97%, and the large dust holding capacity can save the total cost of consumables.

H13级HEPA高效滤网：采用塑料边框，密封性能远超于纸边框，抽拉时平滑无摩擦感；密封胶采用无色无味环保进口胶，确保健康无污染；滤芯采用3M高效HEPA材质，过滤等级为欧标H13级，对于PM2.5的去除效率高达99.97%，超大容尘量为您最大限度节约耗材成本。

Primary Activated Carbon Filter：The plastic frame of this filter seals better than the paper frame, and it is only 2cm thick. The filter is made of composite fiber sprayed with activated carbon powder that can filter out dust particle efficiently. The wind resistance of this filter is very low. The method of spraying makes the activated carbon powder more evenly distributed, which can maximize the effect of activated carbon. This washable filter can be used repeatedly and the combination of primary filter with activated carbon can greatly save your cost of consumables.

初效活性炭二合一滤网：采用塑料边框，密封性能远超于纸边框，抽拉时平滑无摩擦感；滤芯采用复合纤维表面喷涂活性炭粉末，有效过滤粉尘大颗粒，且风阻小，粉末喷涂式活性炭使活性炭分部更均匀，最大化的发挥活性炭的作用。该滤网可用清水清洗反复使用，初效活性炭二合一的方式更是大大降低了耗材使用成本。
