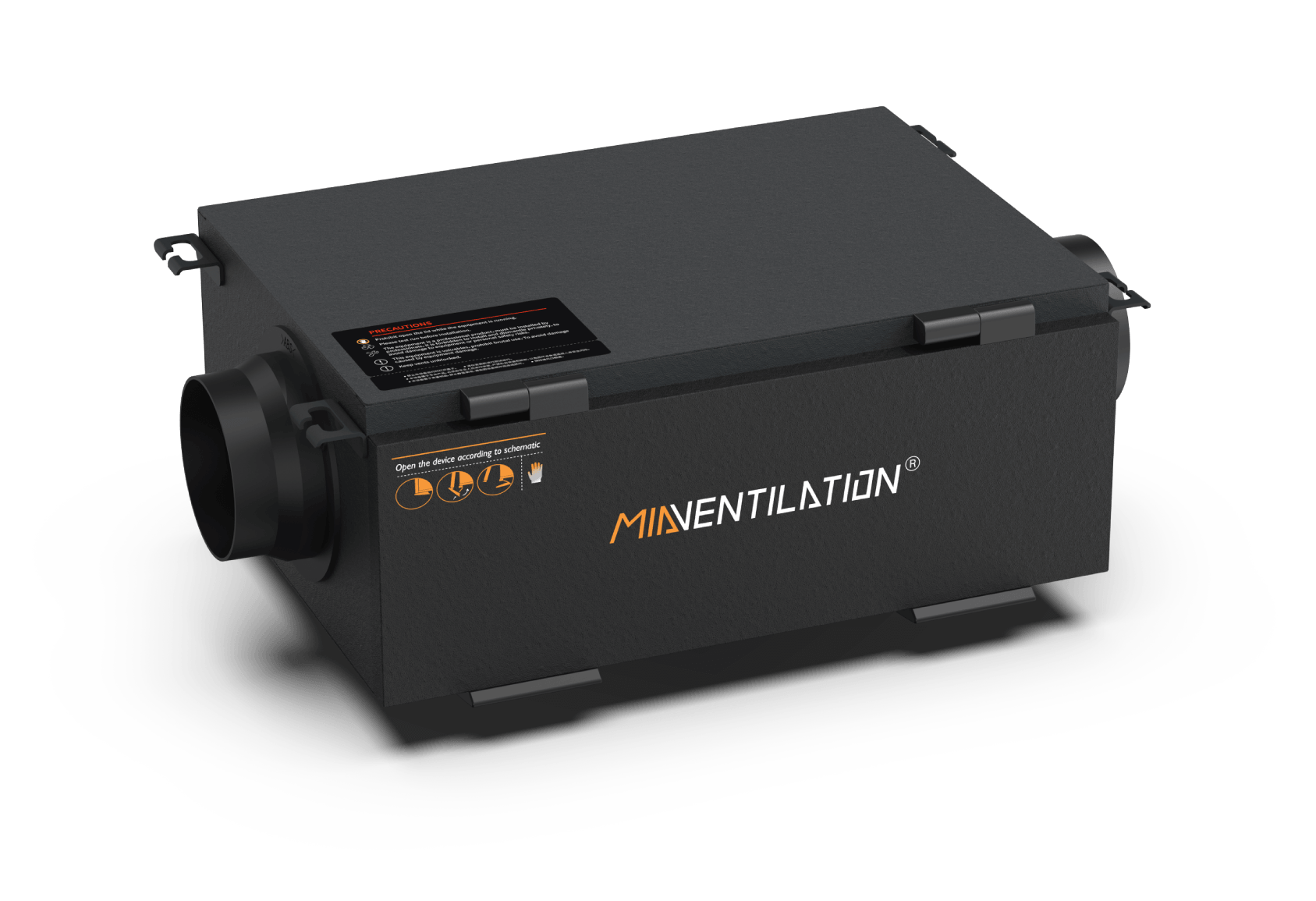

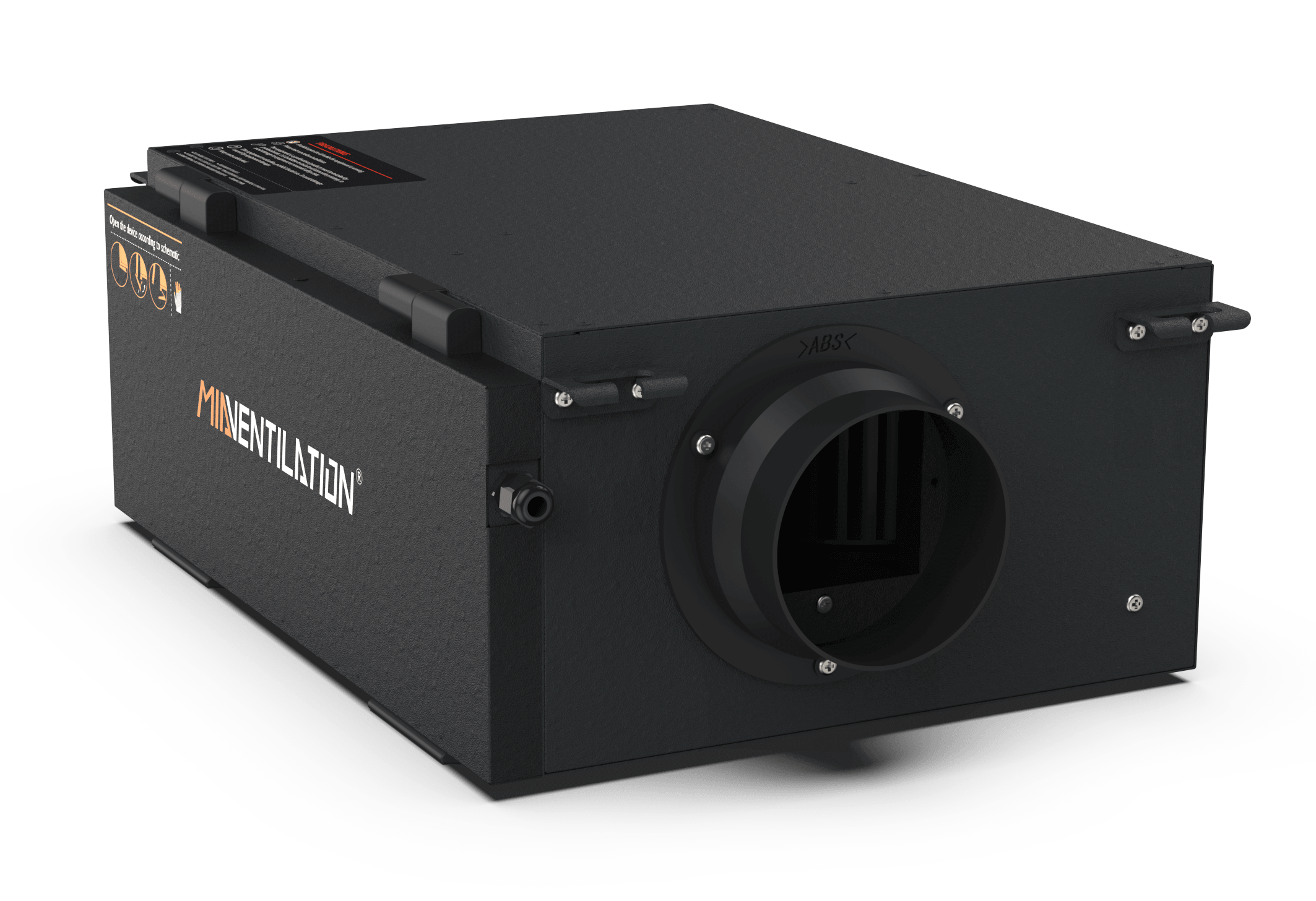

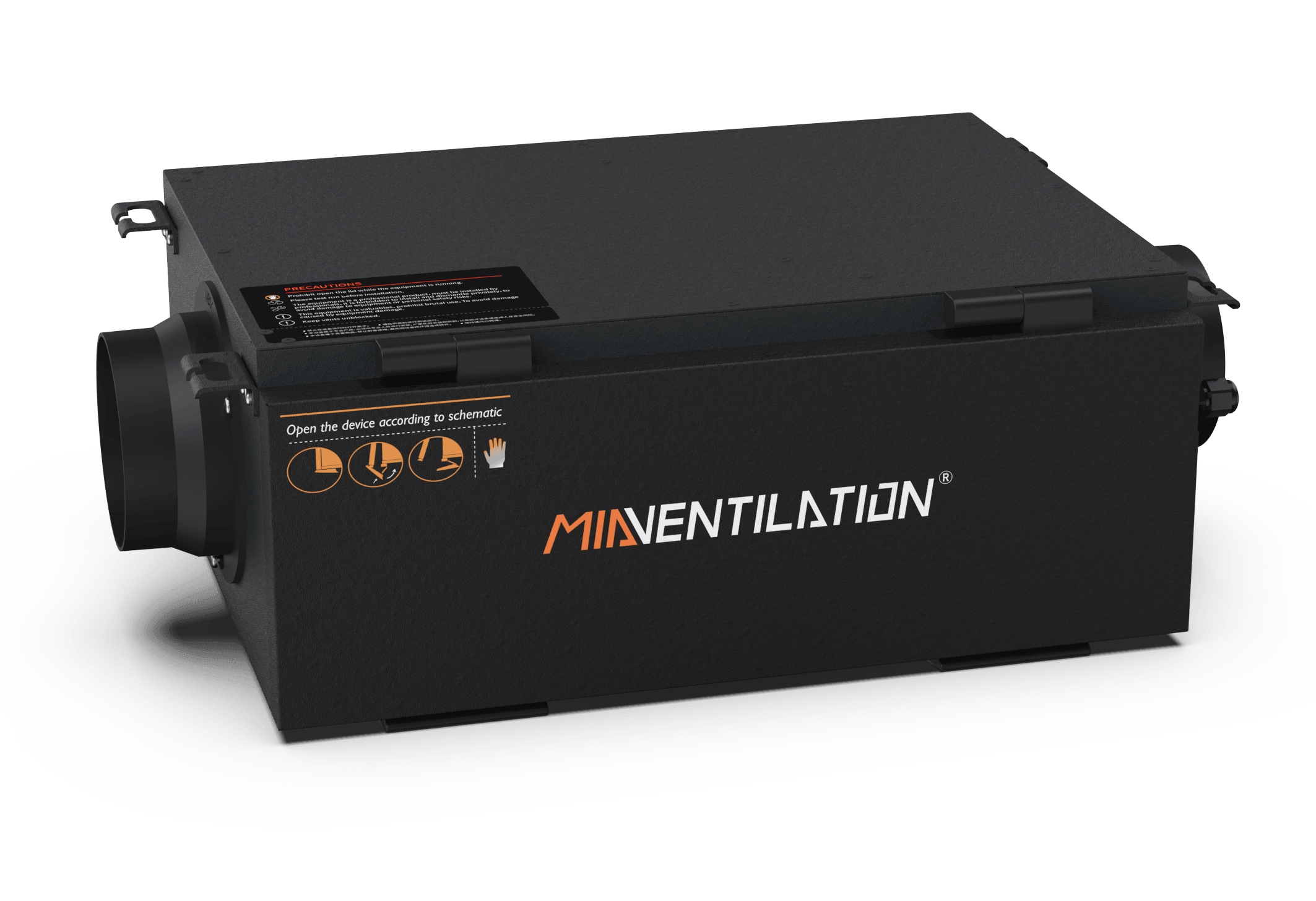

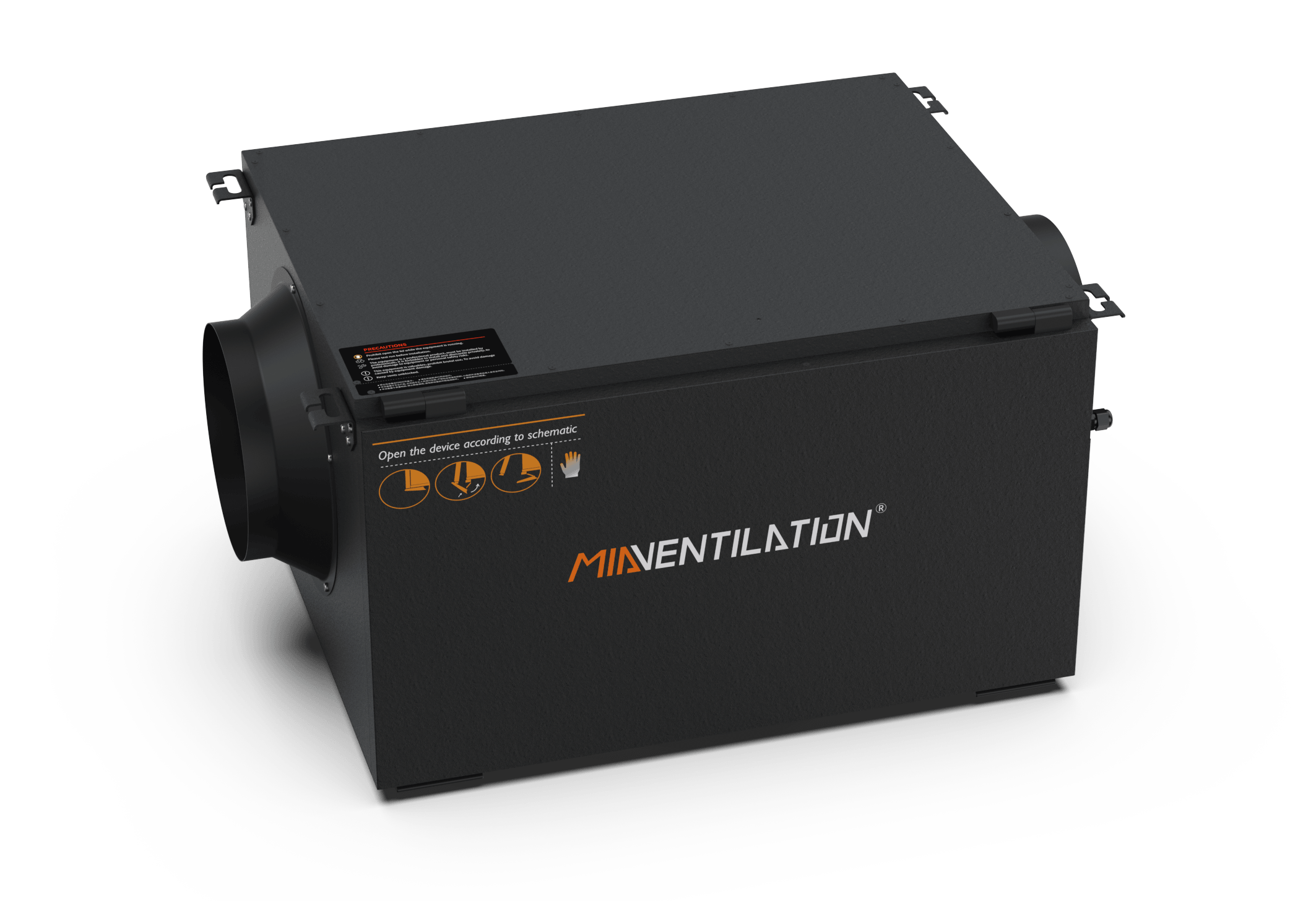

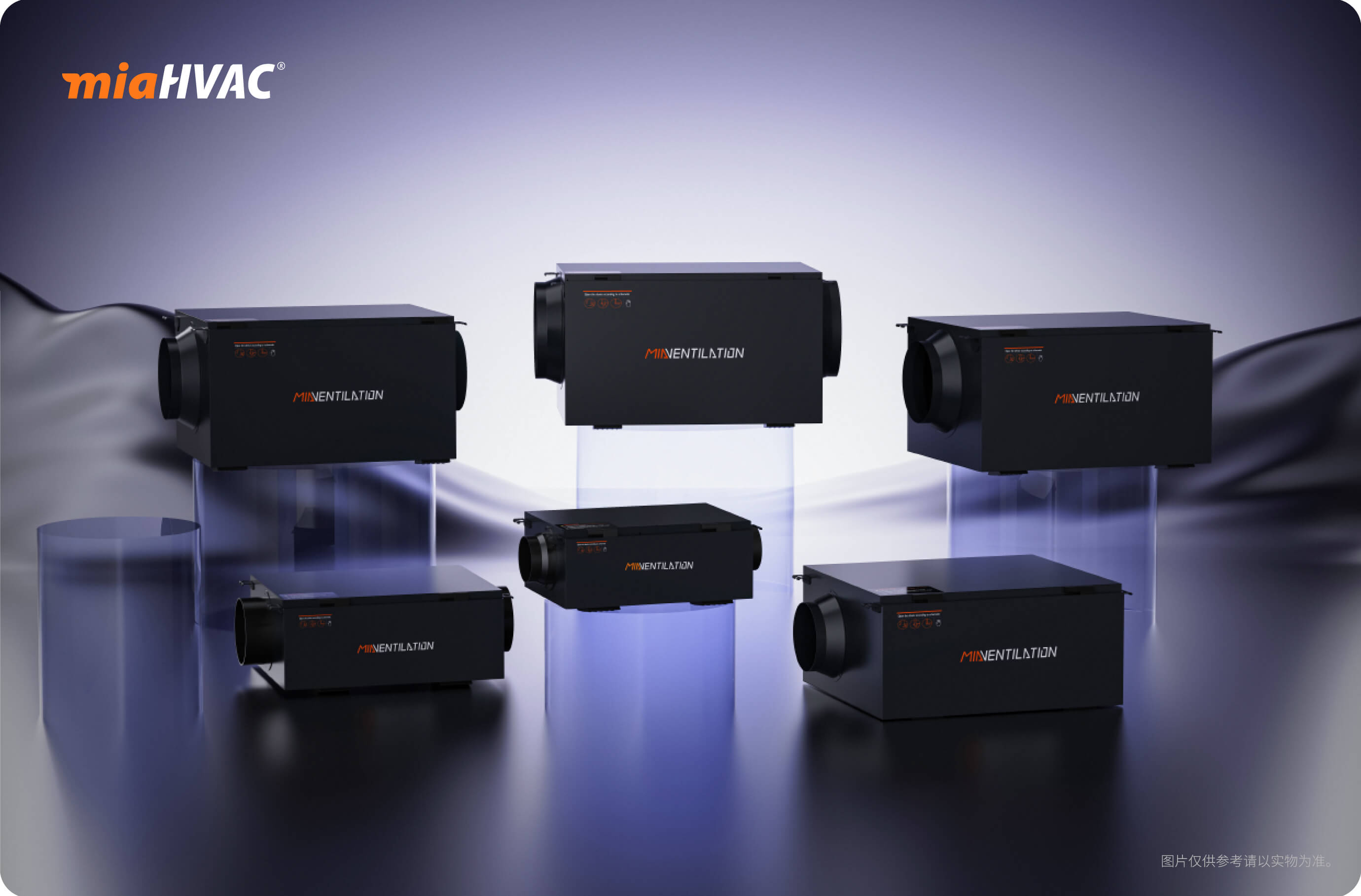

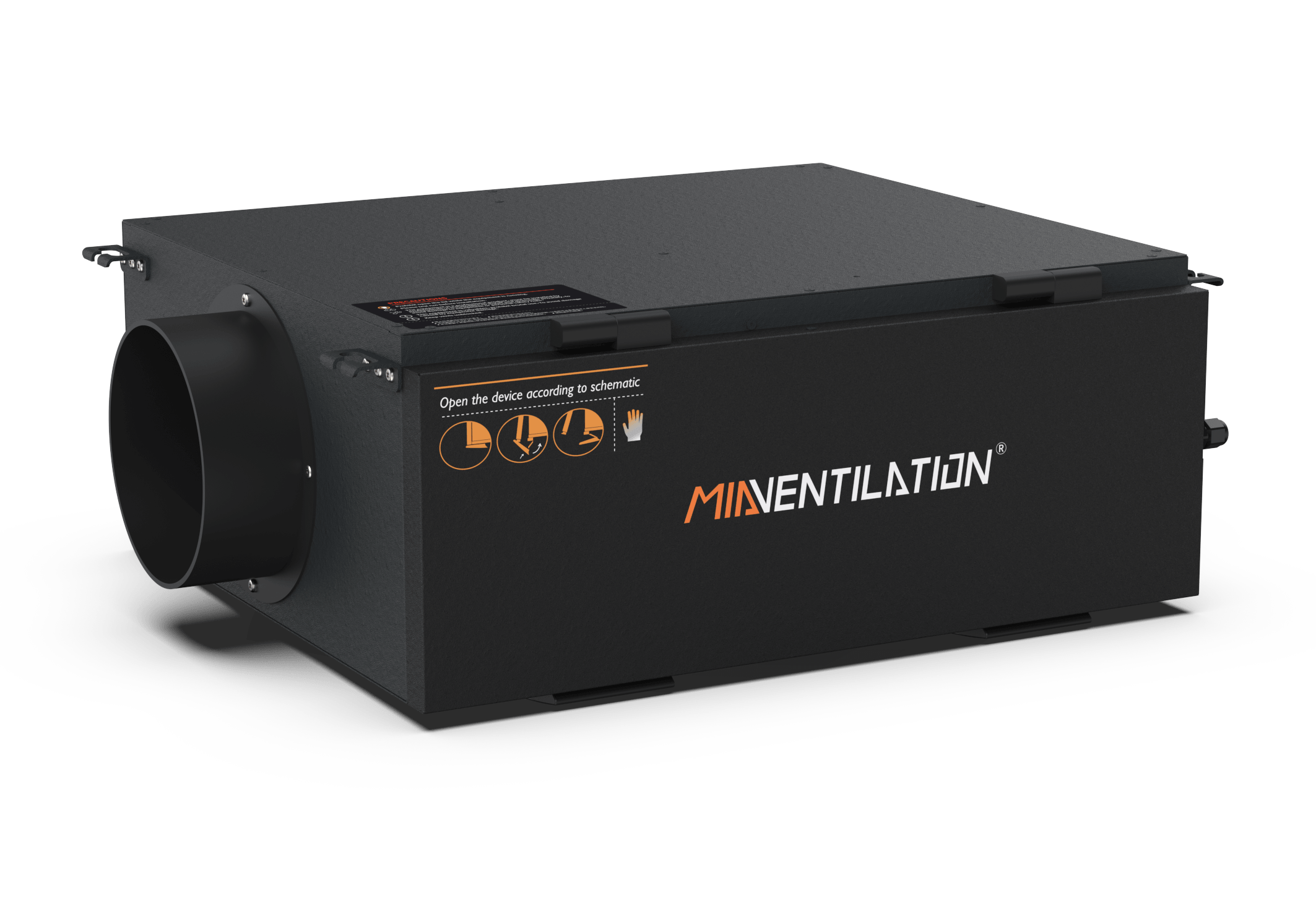

MIA Purified Silent Pipeline Air Supply Fan

米亚净化型静音管道送风机

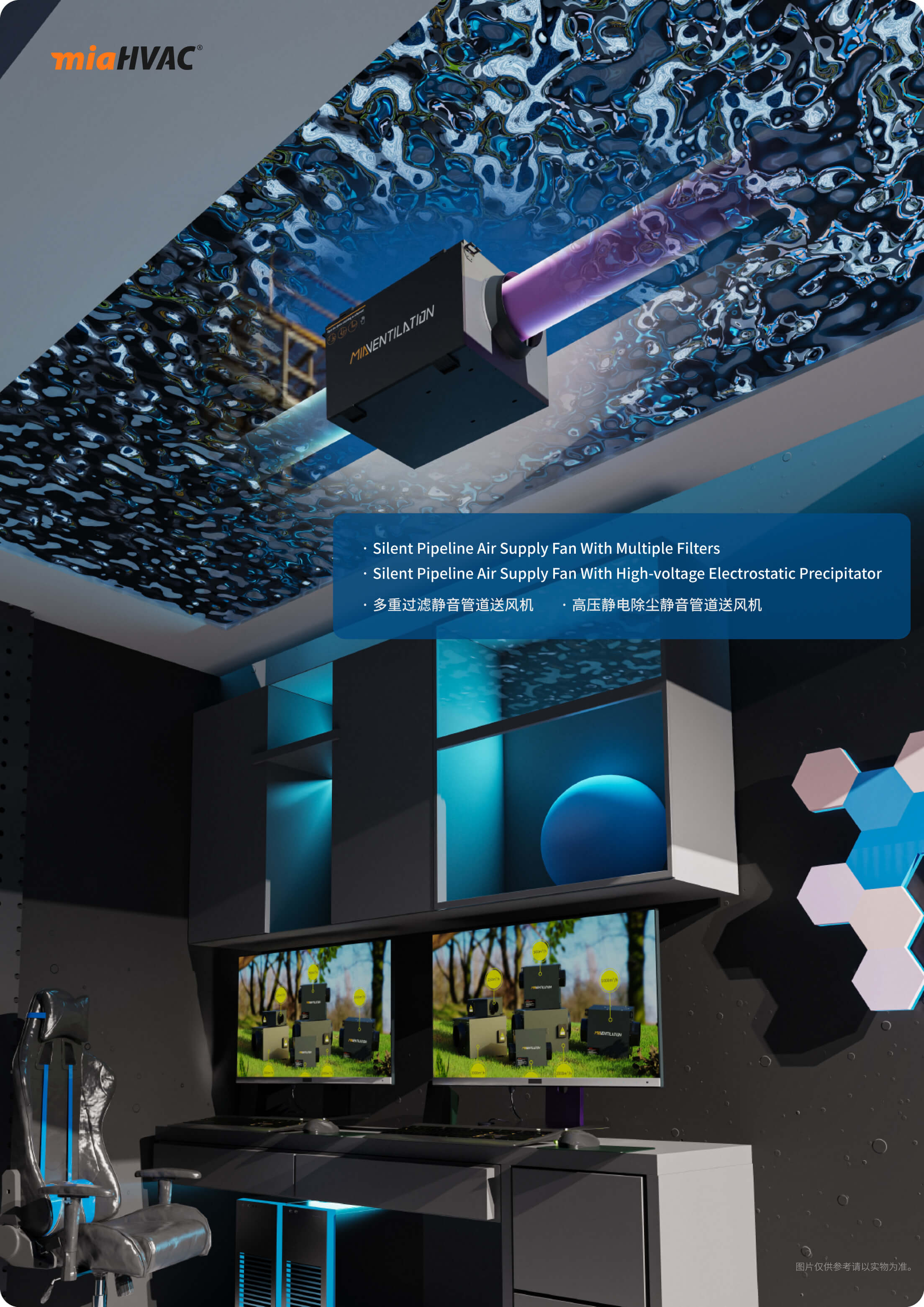

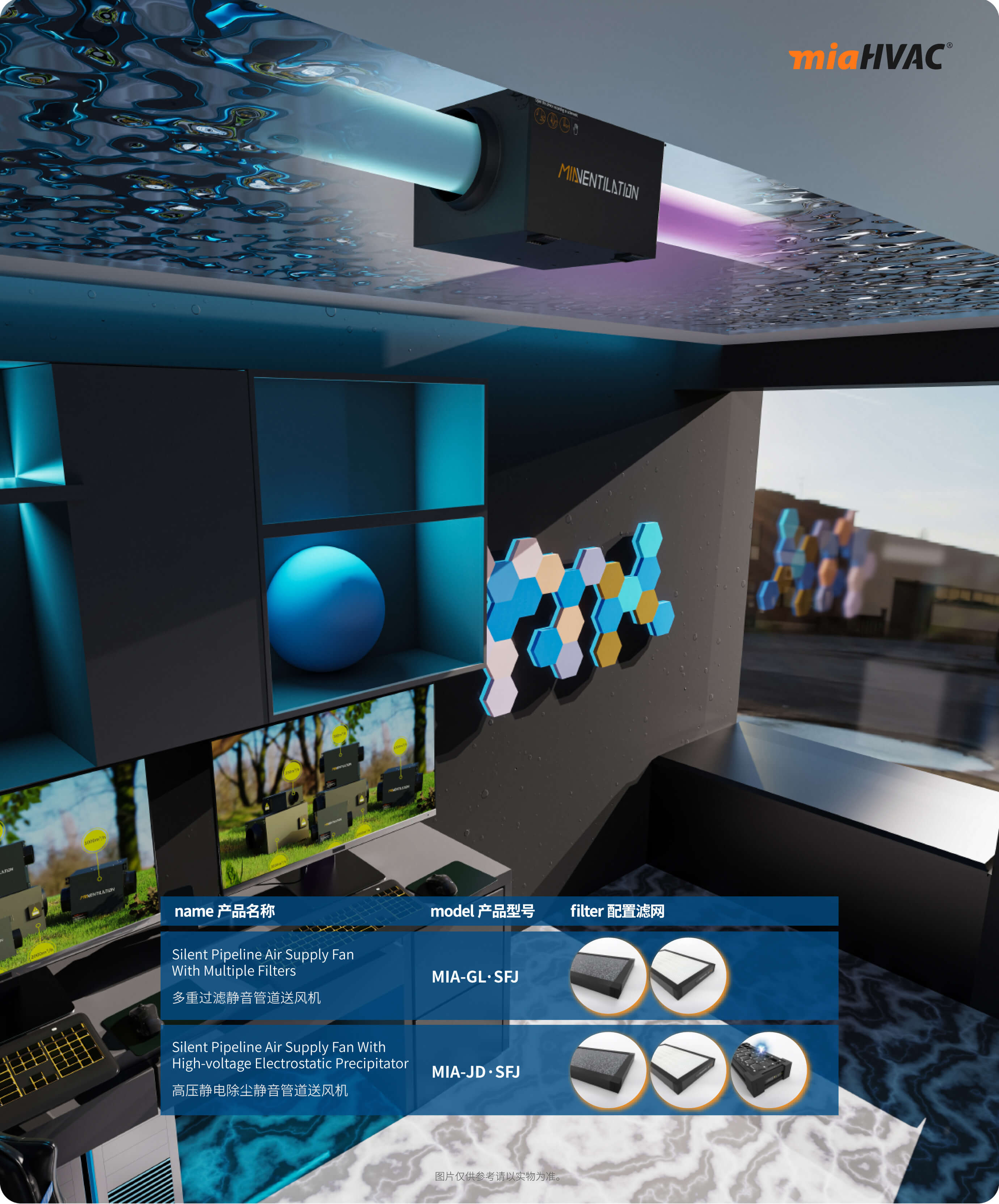

MIA Purified Silent Pipeline Air Supply Fan: The outdoor air is drawn into the equipment and undergoes initial filtration, HEPA high-efficiency filtration, or optional high-voltage electrostatic precipitator purification. After purification, fresh air is sent into the room, creating a positive pressure environment. The polluted air in the room will be naturally discharged from door and window gaps under positive pressure. Suitable for use in places that require positive pressure air supply, the equipment uses a silent centrifugal fan that operates very quietly. It can be equipped with DC/AC motors. If there are special air supply needs, non-standard customized high pressure fans can also be selected to meet the long-distance air supply requirements of multiple turns and long pipelines.

MIA米亚净化型静音管道送风机， 将室外的空气抽如设备中，经过初效过滤，HEPA高效过滤，也可选配高压静电除尘净化，净化后将清新空气送入室内，室内形成正压环境，室内的污浊空气在正压下将从门缝、窗缝等处自然排出。适合需要正压送风的场所使用，设备采用的是静音型离心风机，运行时非常安静，可选配直流/交流电机，如有特殊送风需要，也可以选配非标定制大风压风机，满足多转弯，管道长的远距离送风需求。

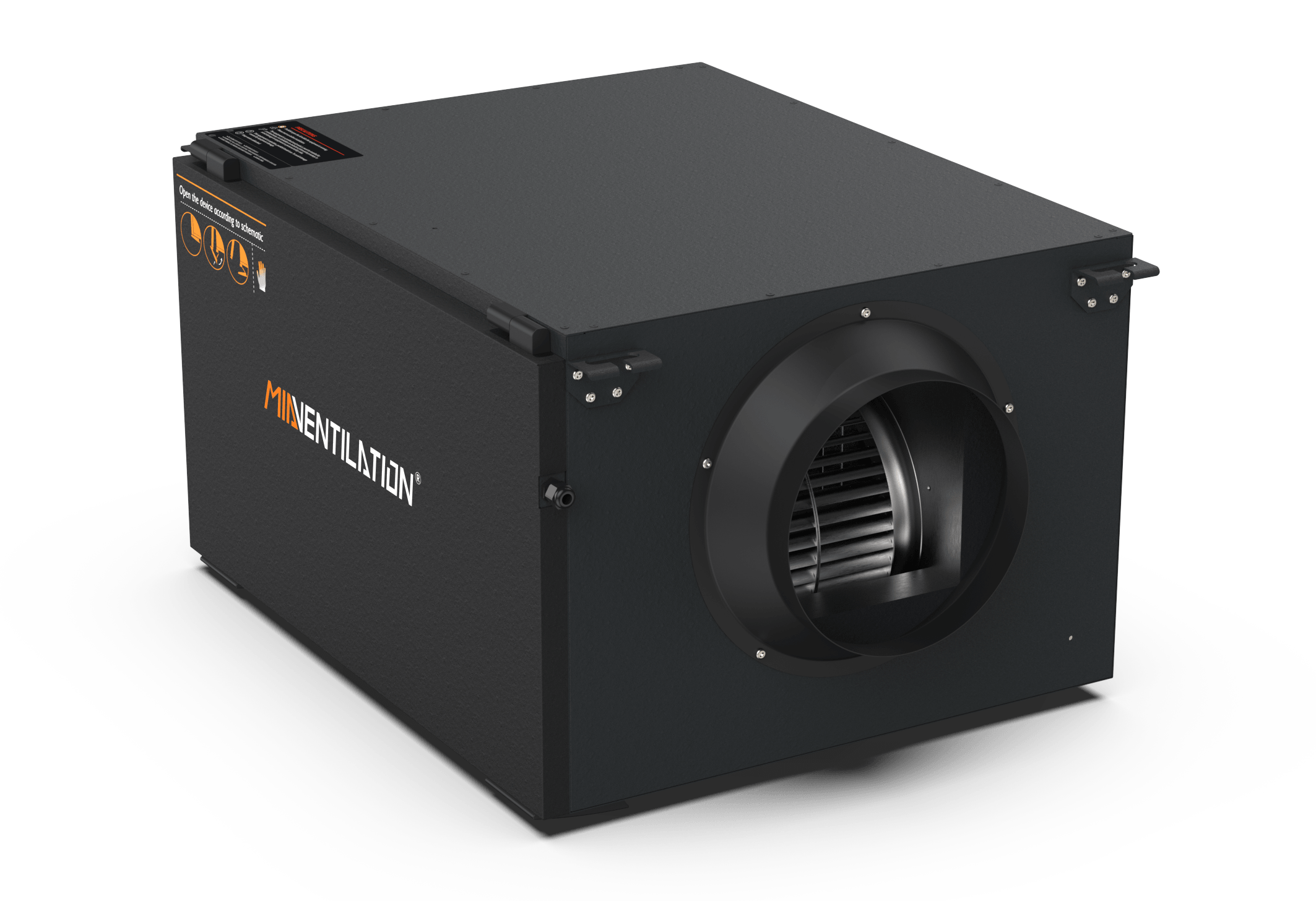

Equipped with high-performance and low-noise centrifugal fans, the AC version can have three speed adjustments, while the DC version supports infinite speed adjustments.

配置高性能低噪音离心风机，交流款可三档调速，直流款可支持无极调速。

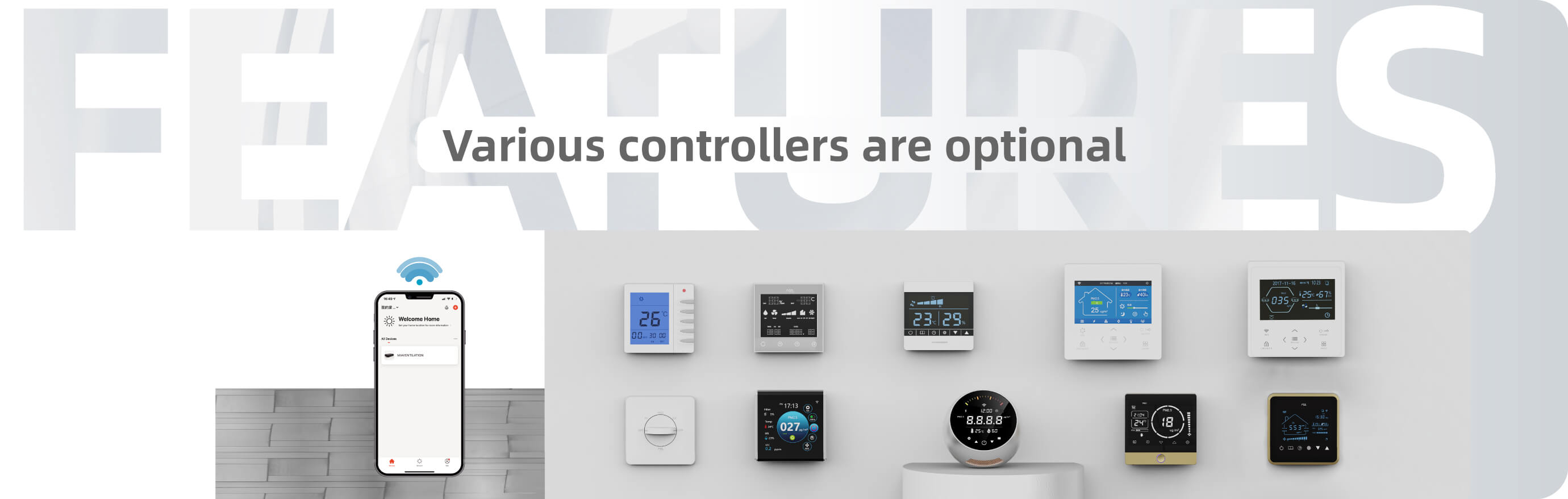

Support optional intelligent WIFI controller, PM2.5，CO2，TVOC， Real time monitoring of temperature and humidity, equipped with RS485 to support centralized control of buildings, can meet the needs of various usage scenarios.

支持选配智能WIFI控制器，PM2.5，CO2，TVOC，温湿度实时监测，选配RS485可支持楼宇集中控制，可以满足各种使用场景需求。

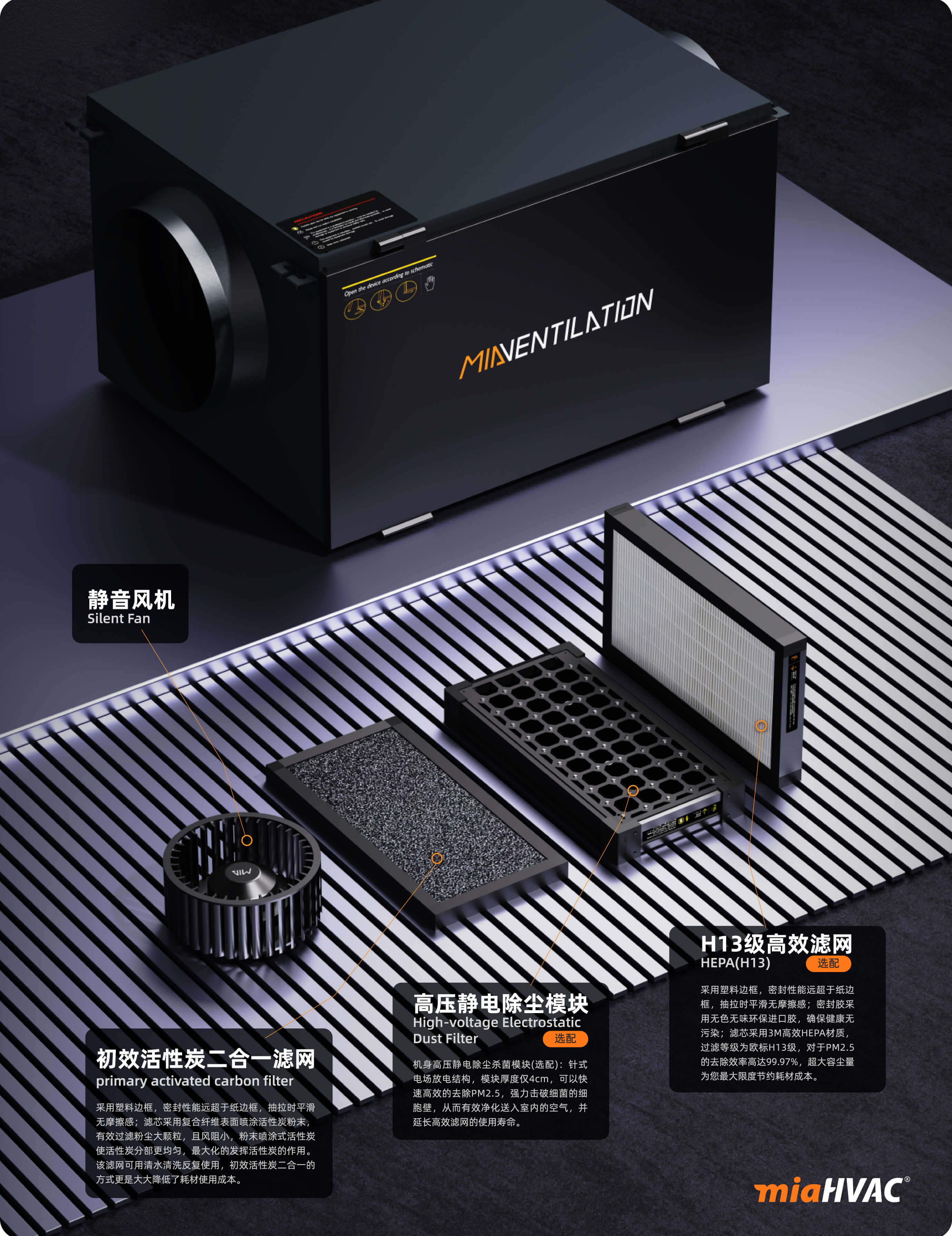

High-voltage Electrostatic Precipitator：The high-voltage electrostatic precipitator adopts the pin-type electric field discharge method to replace the traditional tungsten wire high-voltage removal method. The thickness is only 4cm, suitable for various kinds of our models, PM2.5 removal rate is highly to 98%. Also it can effectively kill bacteria to prevent the infection. It can be washed or cleaned with brush, no need to be replaced, greatly save the cost.

高压静电除尘杀菌模块：采用针式电场放电方式，代替传统钨丝高压静电集尘方式，模块厚度仅为4cm，可灵活适用于各种机型，对于PM2.5的去除效率高达98%。维护时可用清水进行湿洗，也可以用毛刷刷去集尘格中的灰尘，无耗材产生可反复使用，无需担心使用成本。

High Efficiency Particulate Air (HEPA-H13) Filter：The thickness of this filter is only 3cm. The plastic frame has higher sealing than paper frame, and we use the environmental friendly imported sealant, no color & odor, to ensure healthy and avoid pollution. The raw material of this HEPA filter is from 3M, European standard H13 level. PM2.5 removal rate can be up to 99.97%, and the large dust holding capacity can save the total cost of consumables.

H13级HEPA高效滤网：采用塑料边框，密封性能远超于纸边框，抽拉时平滑无摩擦感；密封胶采用无色无味环保进口胶，确保健康无污染；滤芯采用3M高效HEPA材质，过滤等级为欧标H13级，对于PM2.5的去除效率高达99.97%，超大容尘量为您最大限度节约耗材成本。

Primary Activated Carbon Filter：The plastic frame of this filter seals better than the paper frame, and it is only 2cm thick. The filter is made of composite fiber sprayed with activated carbon powder that can filter out dust particle efficiently. The wind resistance of this filter is very low. The method of spraying makes the activated carbon powder more evenly distributed, which can maximize the effect of activated carbon. This washable filter can be used repeatedly and the combination of primary filter with activated carbon can greatly save your cost of consumables.

初效活性炭二合一滤网：采用塑料边框，密封性能远超于纸边框，抽拉时平滑无摩擦感；滤芯采用复合纤维表面喷涂活性炭粉末，有效过滤粉尘大颗粒，且风阻小，粉末喷涂式活性炭使活性炭分部更均匀，最大化的发挥活性炭的作用。该滤网可用清水清洗反复使用，初效活性炭二合一的方式更是大大降低了耗材使用成本。
